Appreciation towards Sanjay Puri Architects for providing the following description:
该项目的设计内容十分明确：6栋公寓楼，每栋11层，共包含126间公寓。公寓面积分为750平方米、850平方米和950平方米三种，各自配有宽敞的客厅、5间卧室、1间书房和1间健身房。
In response to a very specific brief, this housing project has 126 apartments in six buildings of 11 storeys each. Planned in three different sizes these apartments of 750, 850 & 950 sqm are configured with large living spaces, 5 bedrooms, a study & a gym in them.
▼项目概览，overview ©Abhishek Shah
▼公寓楼外观， apartment building exterior view ©Abhishek Shah
住宅区坐落在苏拉特市区的一处29600平方米的场地上，有着40米的高度限制。建筑沿着场地周边布局，在中央形成一个13000平方米的开阔花园。所有车辆均被限制在场地边缘，同时设有地下停车场，使地面层的80%成为无车区域。大面积的景观带呈尖角状抬升于地面，掩映着半地下的休闲运动空间，同时起到阻隔热量、促进自然通风和引入光线的作用。

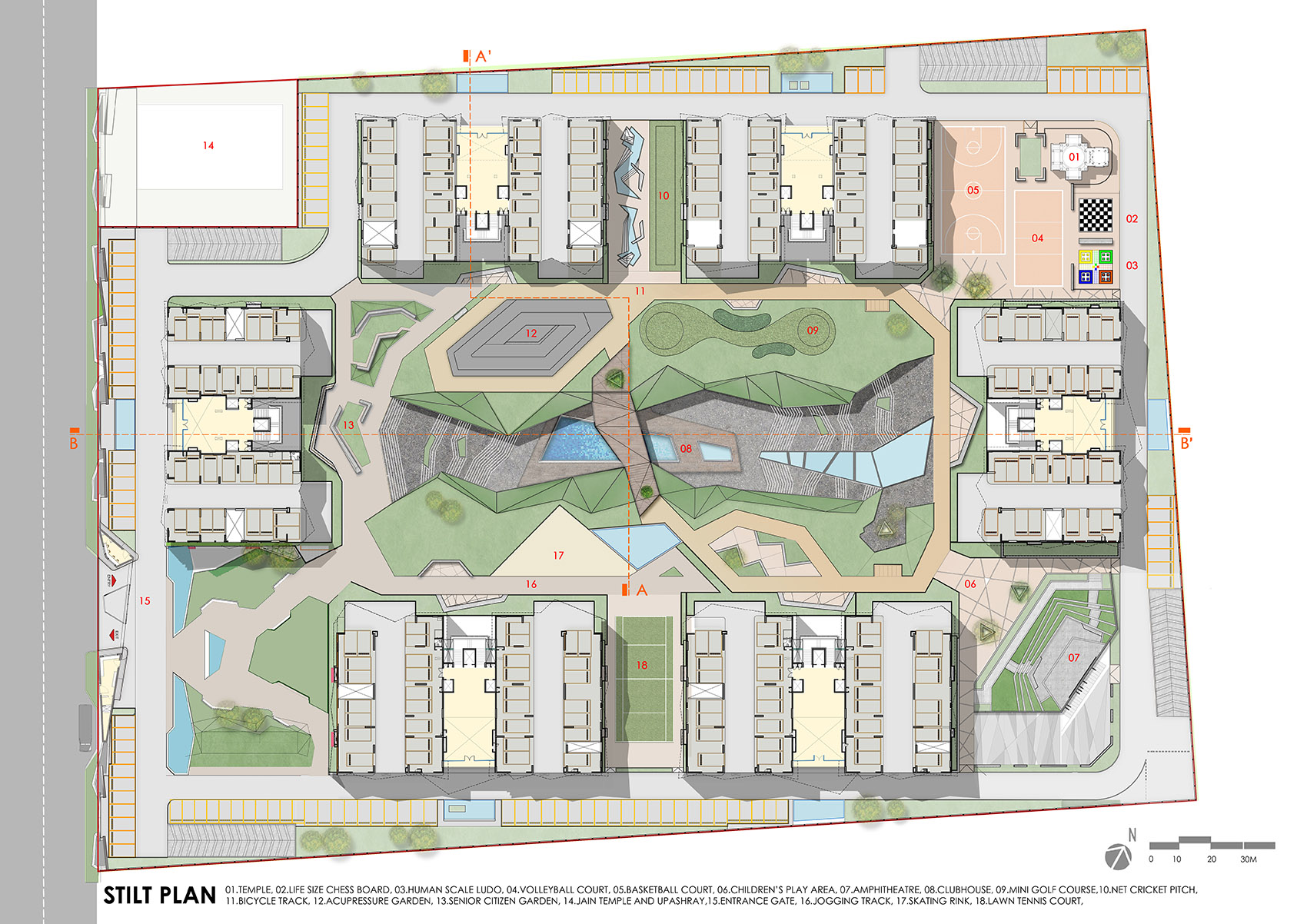

▼场地平面图，site plan ©Sanjay Puri Architects
Located on a plot of 29,600 sqm in Surat city, India, with a height limitation of 40 metres, the buildings are laid out along the site perimeter creating a large focal garden of 13,000 sqm. All the vehicular movement is restricted to the perimeter along with a basement car park generating 80% of the plot as vehicle-free space. The large landscaped area rises in angular planes revealing a partially sub-terranean recreational club with entertainment & sports facilities that are sheltered from heat gain & simultaneously open to natural ventilation & light.

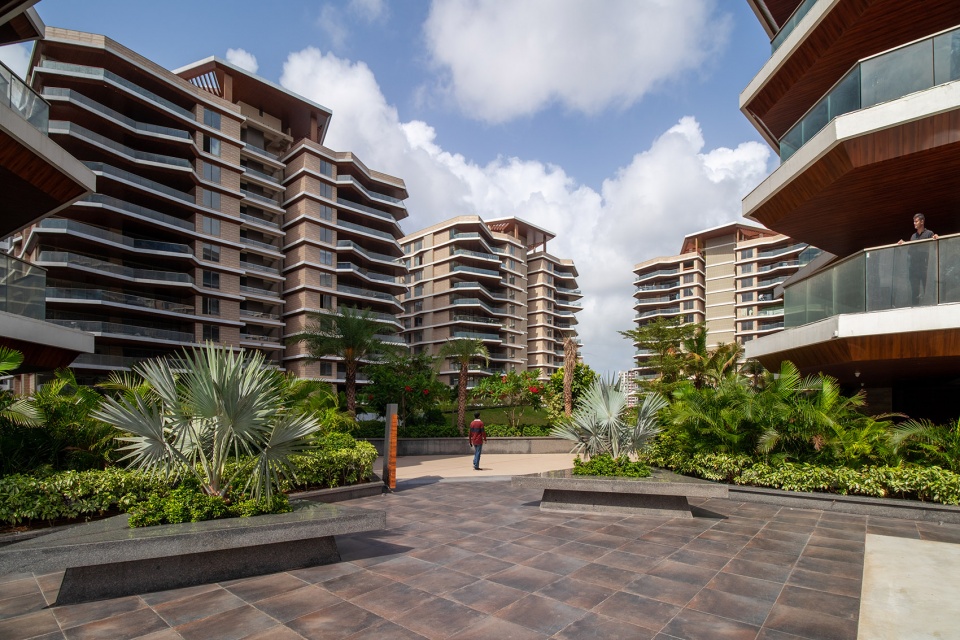

▼场地中央形成一个13000平方米的宽敞花园，the buildings are laid out along the site perimeter creating a large focal garden of 13,000 sqm ©Abhishek Shah

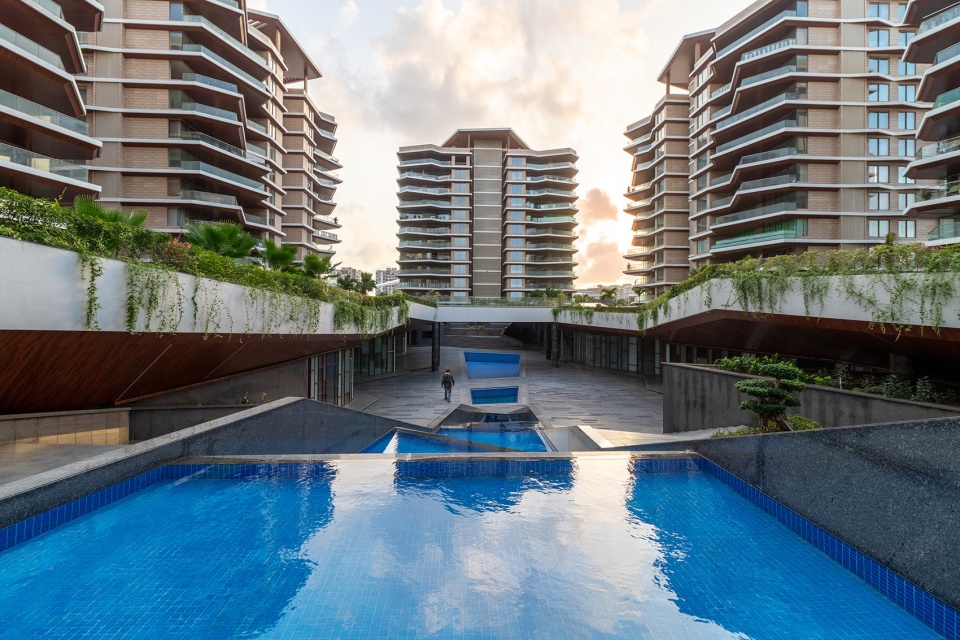

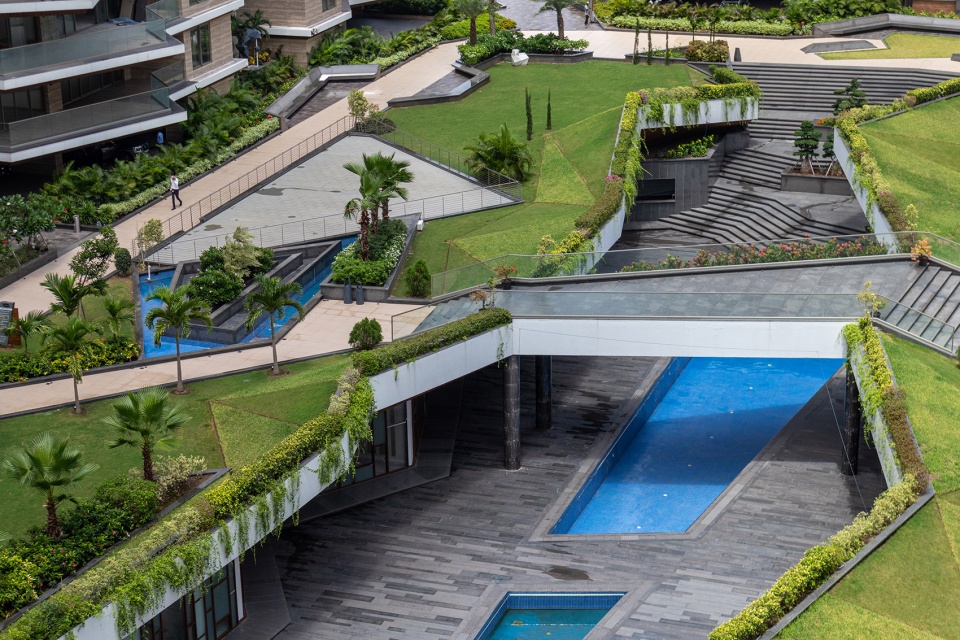

▼半地下的休闲运动空间，the sub-terranean recreational club ©Abhishek Shah

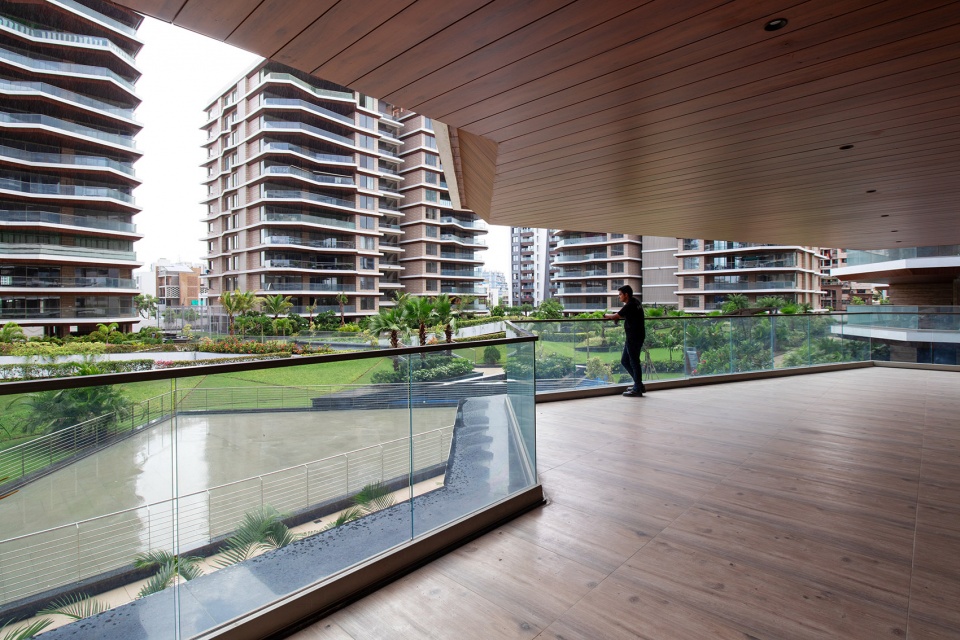

▼从户外平台望向花园，view to the garden from the outdoor deck ©Abhishek Shah
公寓楼的布局迎合了交叉通风的需要，并通过大型悬臂式平台带来荫蔽的空间以适应当地气候（苏拉特每年有8个月气温超过35℃）。每栋公寓楼都设有11米高的入口大厅，每层包含2套公寓，第11层为顶层复式公寓。
The apartments are planned to facilitate cross ventilation & are sheltered by large cantilevered decks that mitigate heat gain in response to the climate of the location. Temperatures are in excess of 35°C for 8 months annually in Surat city. Each of the buildings is 11 metres high entrance lobbies with 2 apartments on each floor & penthouses on the 11th floor.

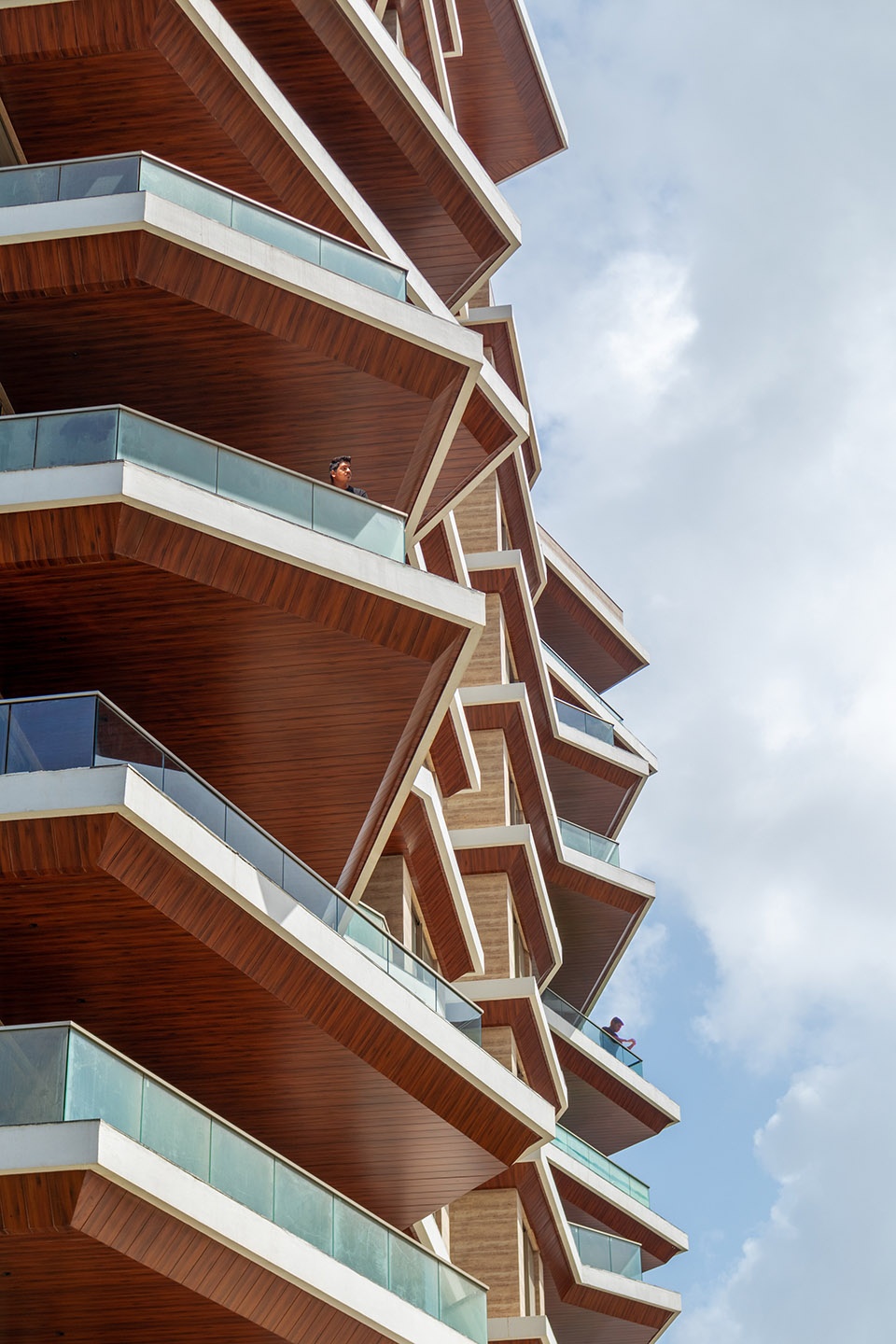

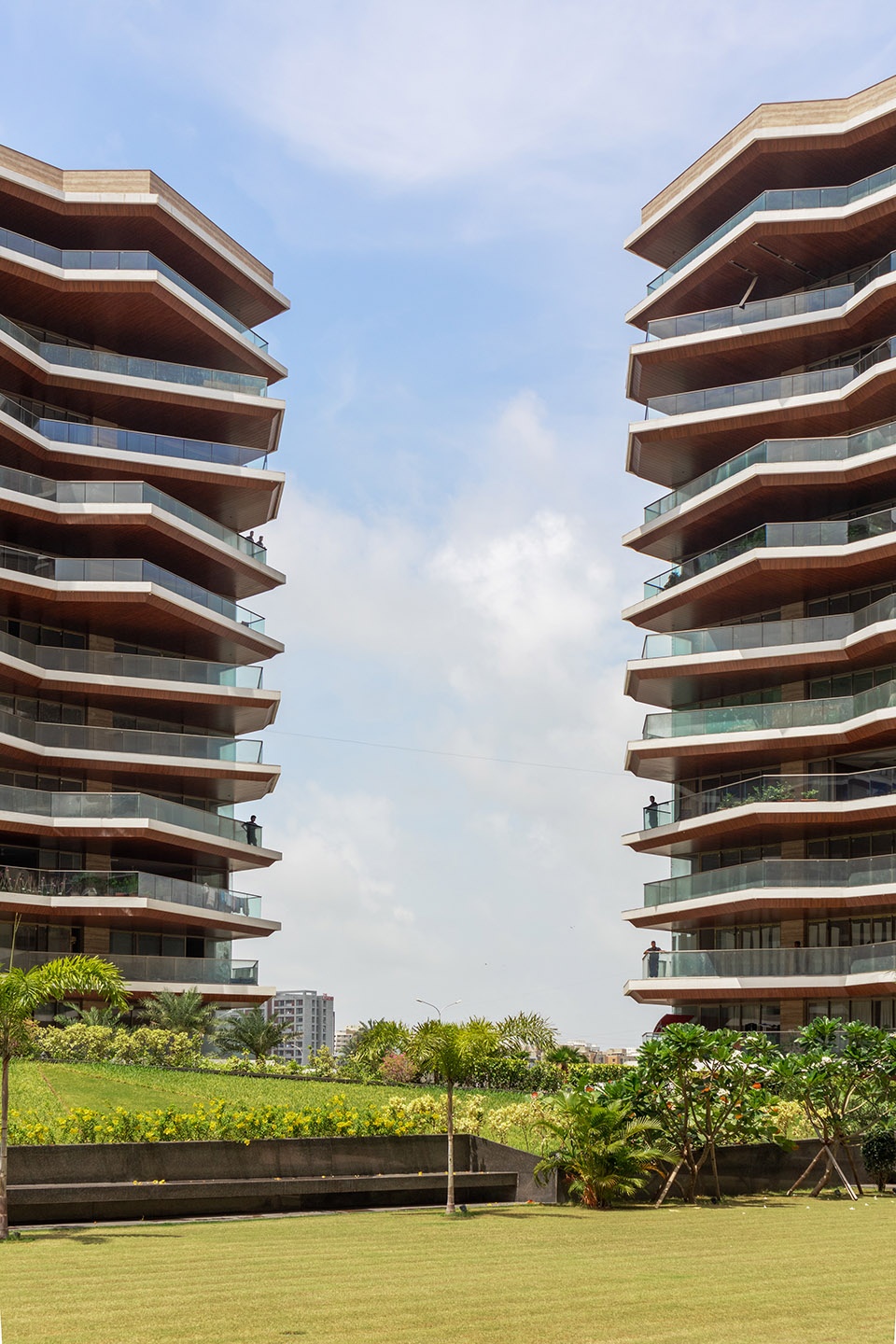

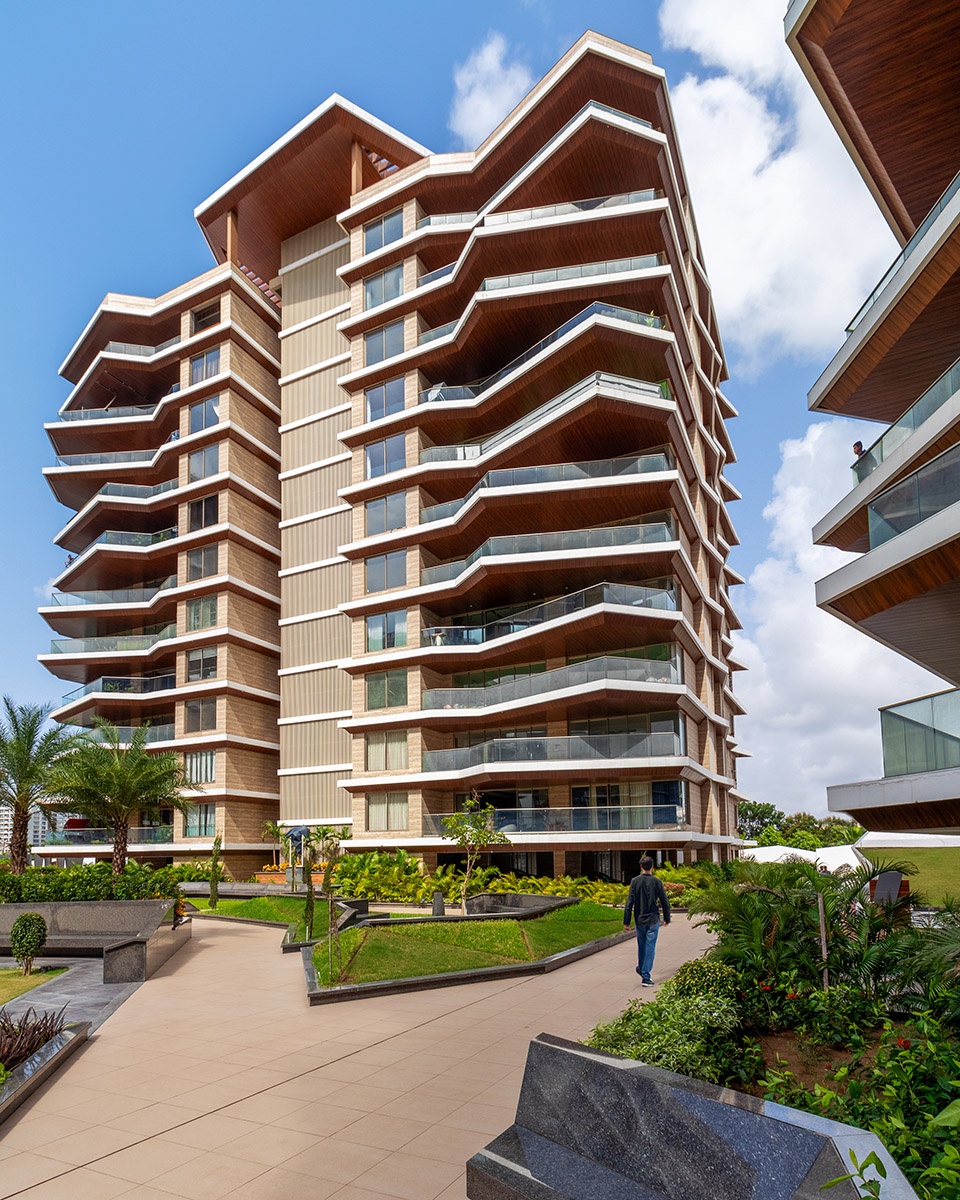

▼大型悬臂式平台为公寓带来荫蔽，the apartments are sheltered by large cantilevered decks ©Abhishek Shah

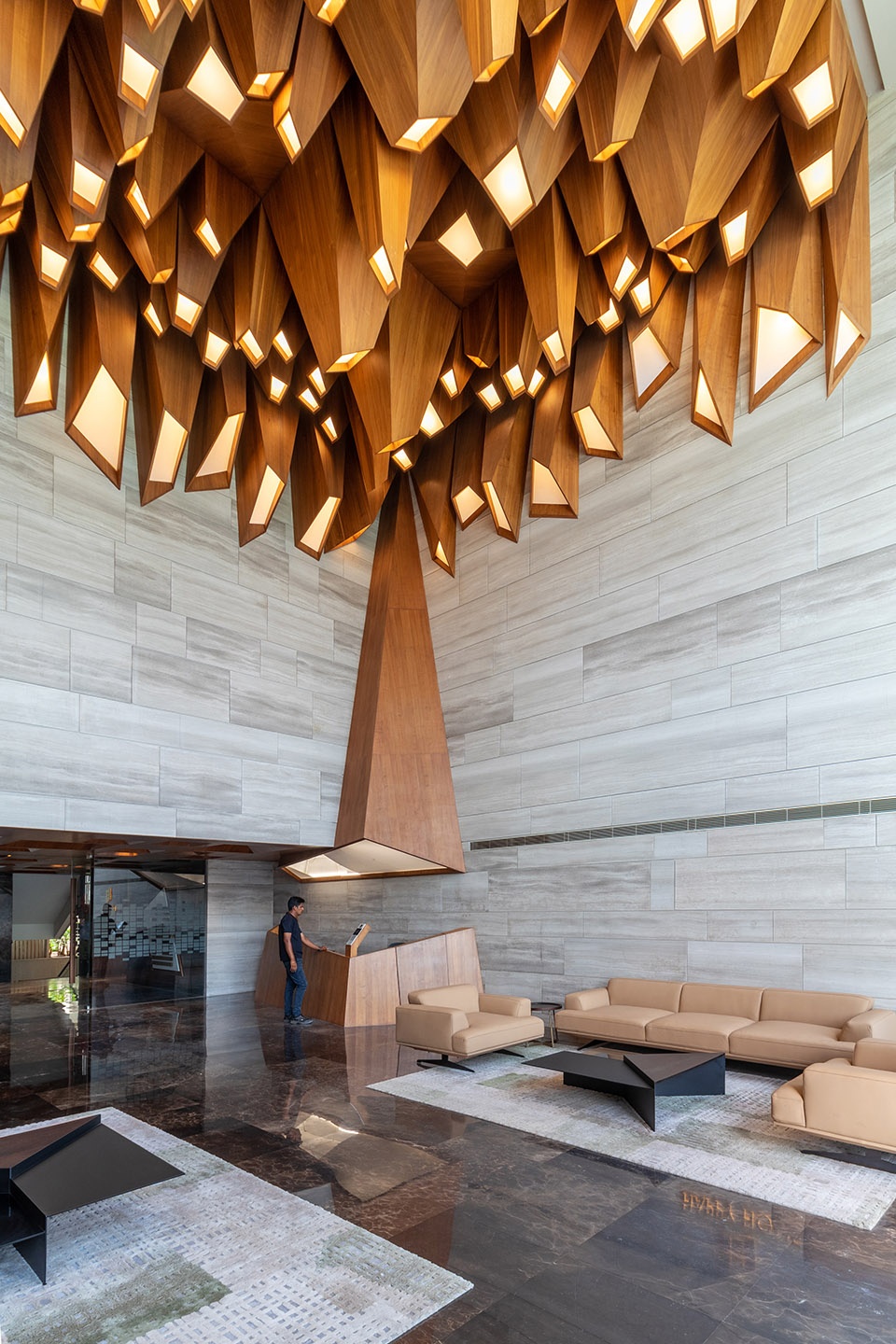

▼入口大厅，entrance lobby ©Abhishek Shah

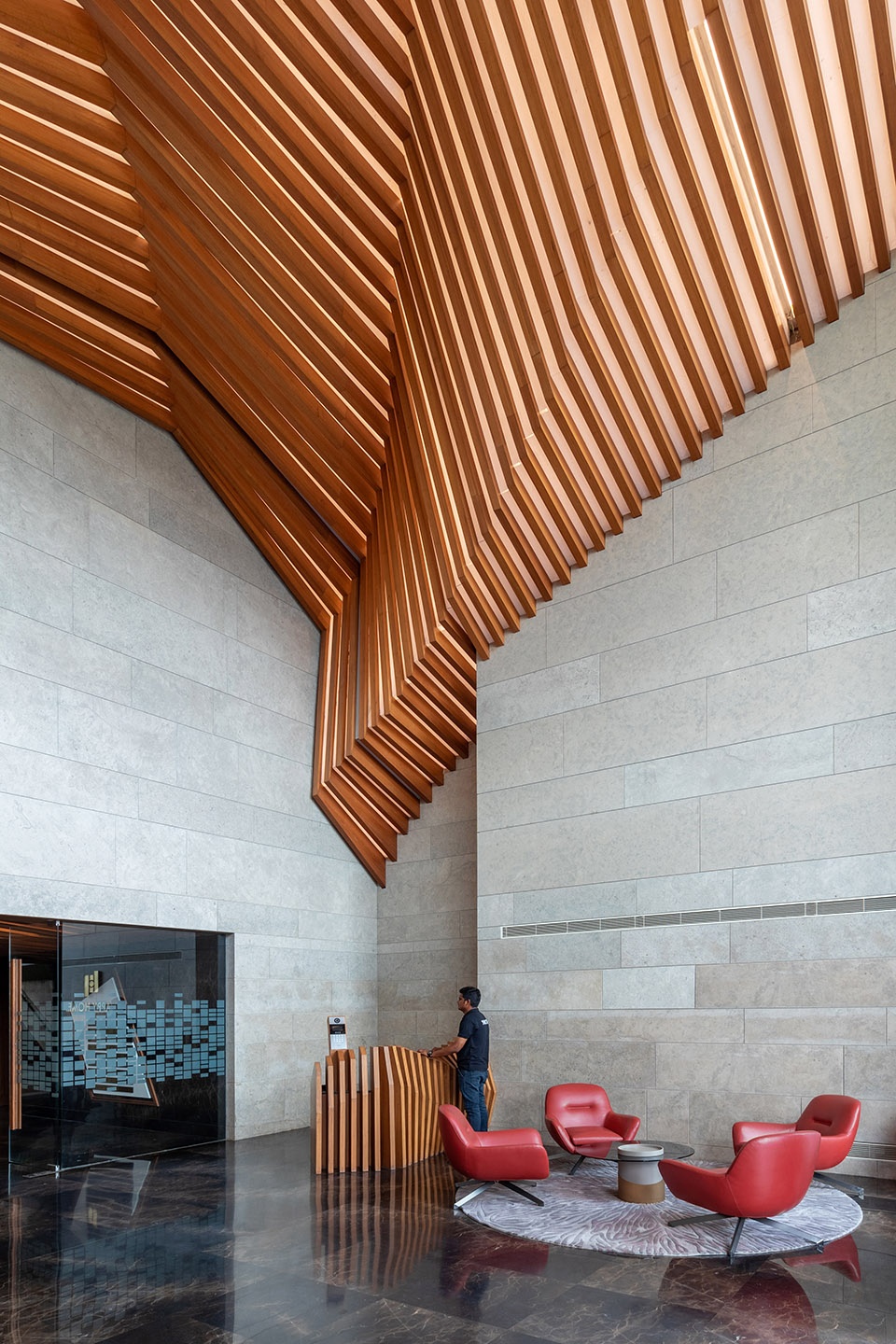

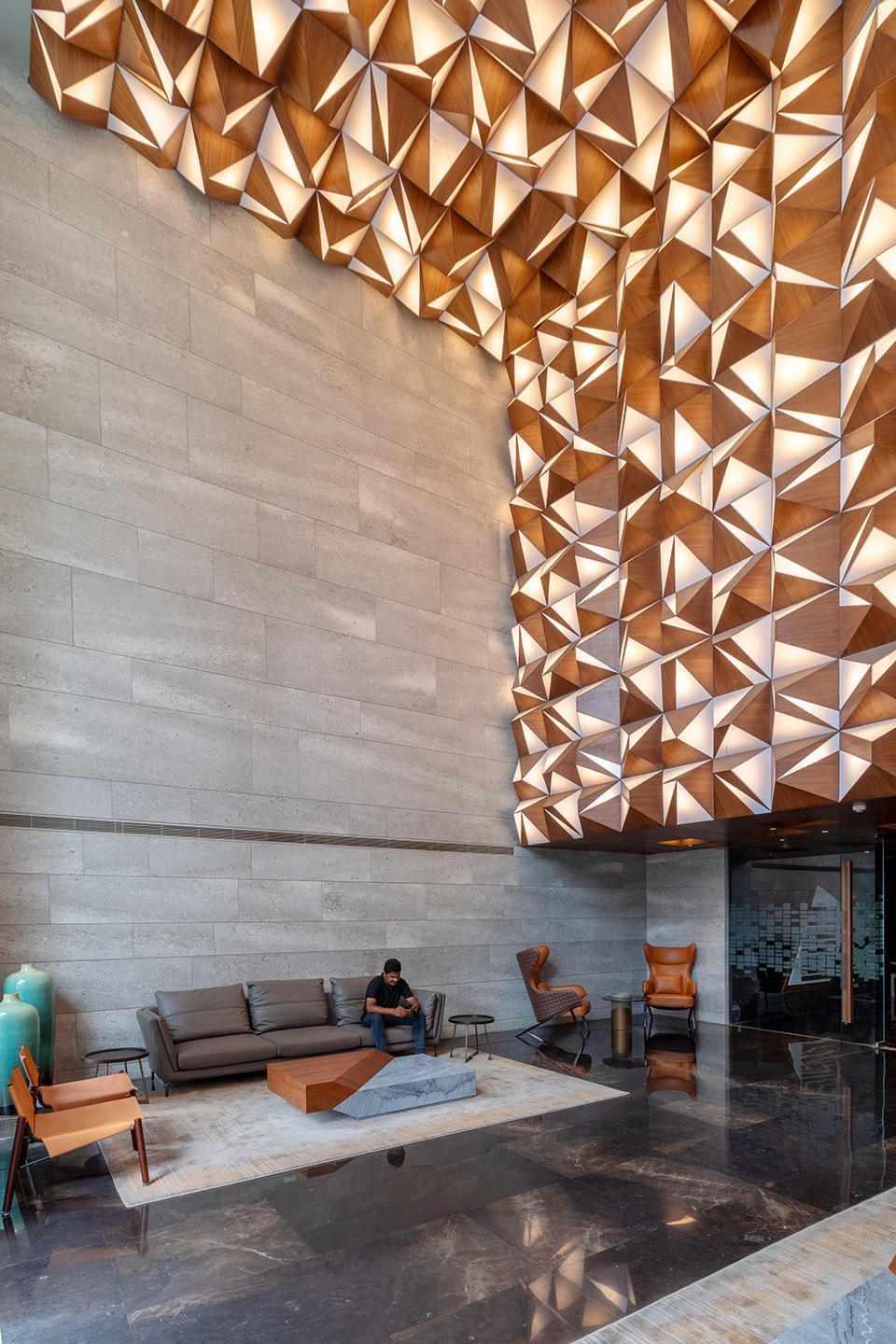

▼大厅休息区，lobby seating area ©Abhishek Shah
基于布局形成的开阔景观结合了大量的运动设施，以及为不同年龄使用者提供的活动区域。在充分考虑客户要求、场地位置和城市气候的前提下，Excellenseaa 126项目创造了一个可持续的微环境。遍布着绿植的景观区和水体能够促进被动式的降温。每间公寓的宽阔悬挑和露台在增加私人户外活动空间的同时还减少了热量的获取。
The extensive landscaped space generated by the layout is planned with numerous sports facilities & different areas for different age groups. Designed in response to the client’s brief, the location of the site & the city’s climate, Excellenseaa 126 creates a micro-environment that is sustainable. The extensive landscaping with trees, plants, and water bodies helps in passive cooling. The large overhangs & outdoor decks to each apartment reduce heat gain whilst adding individual outdoor spaces.

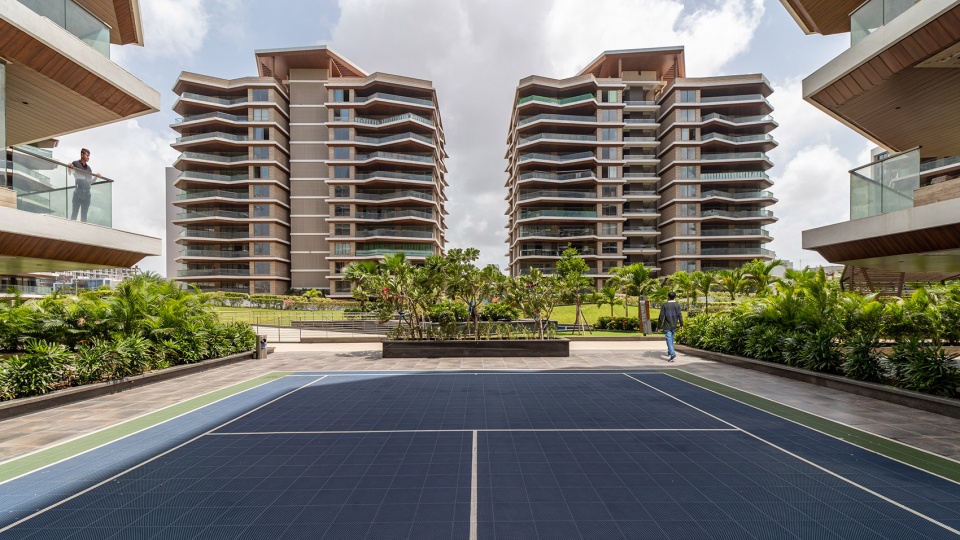

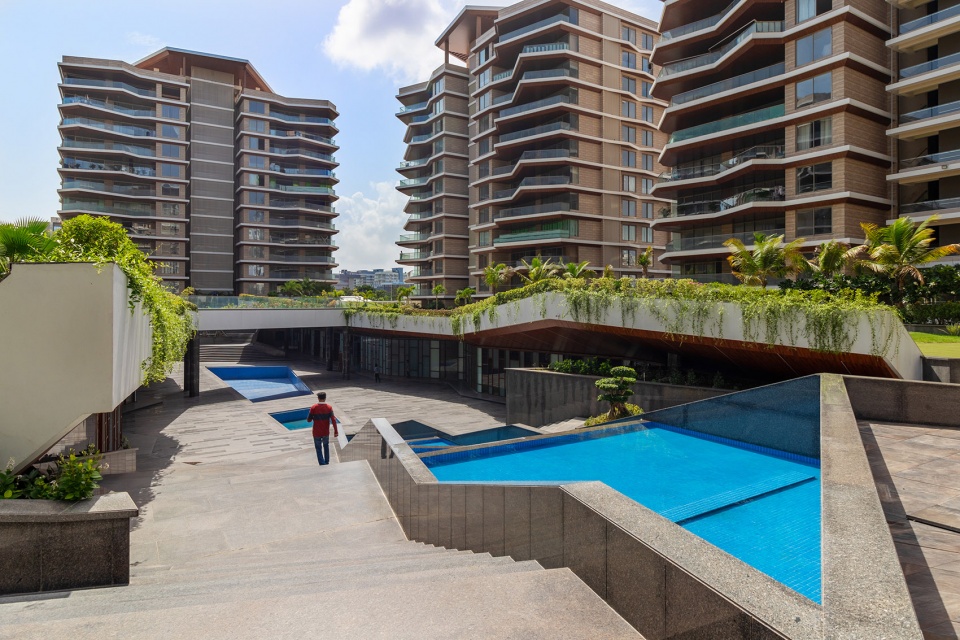

▼运动设施和水池，sports facility and water bodies ©Abhishek Shah

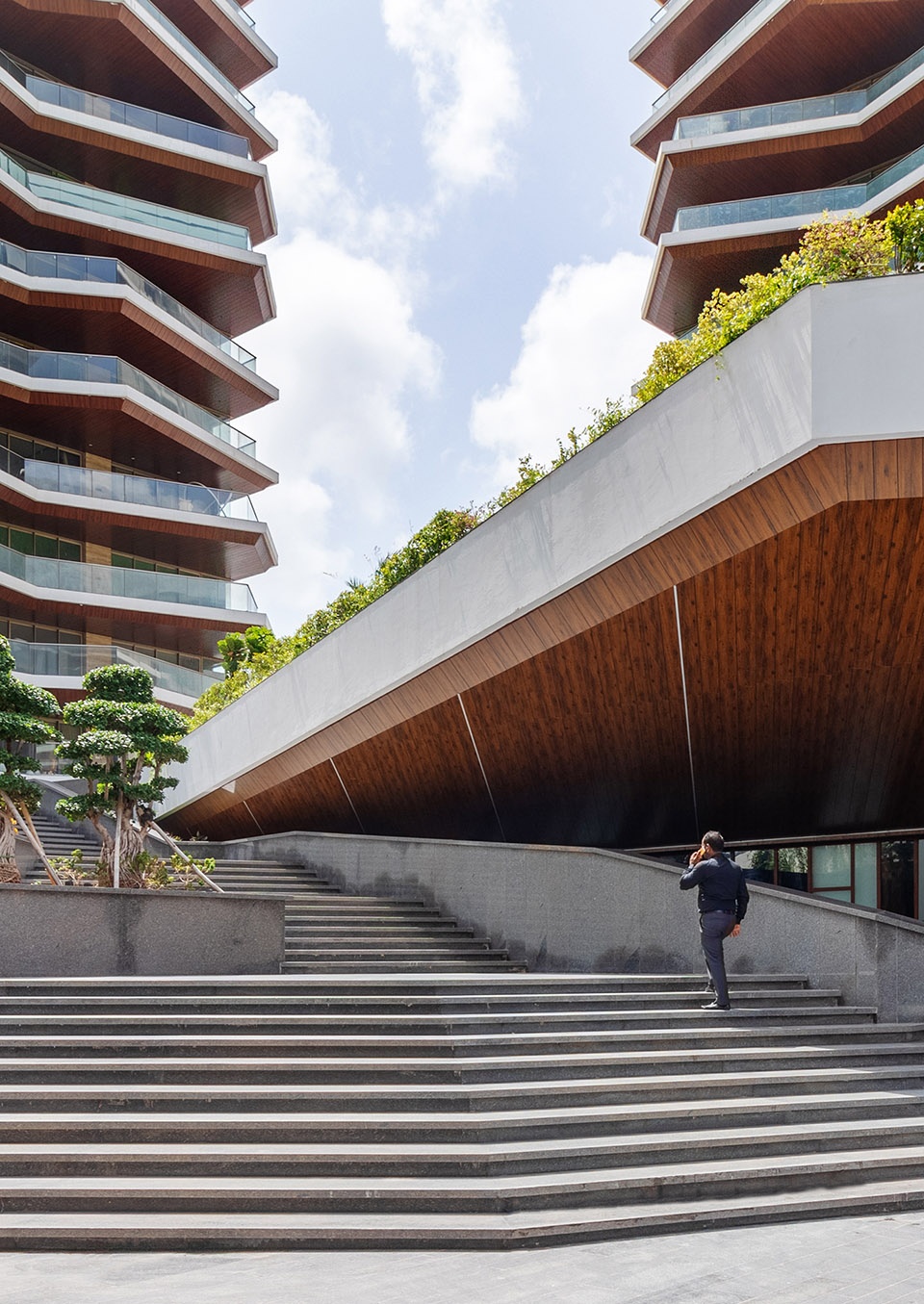

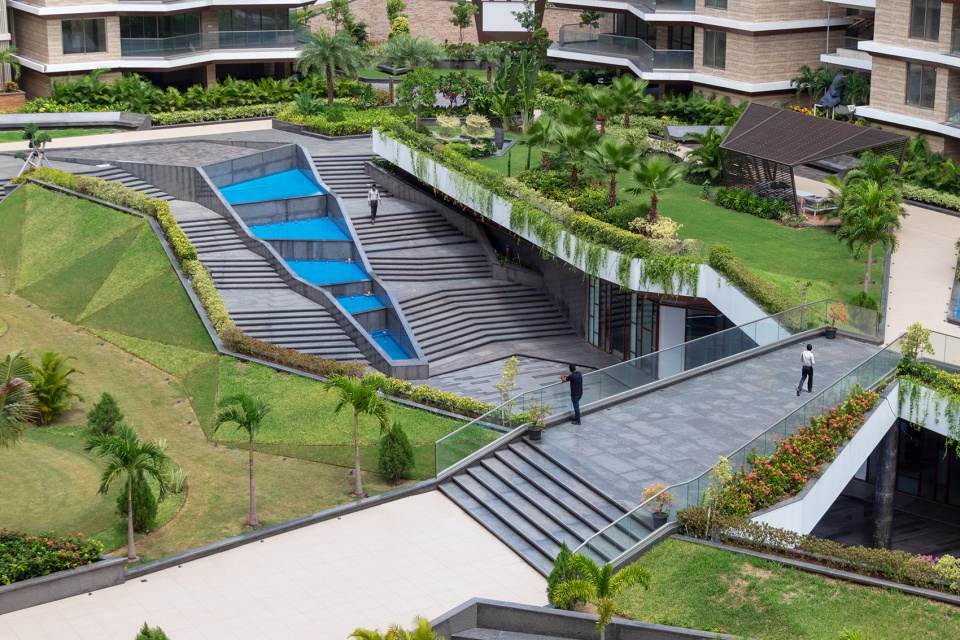

▼大楼梯，the grand staircase ©Abhishek Shah
水循环系统、雨水收集系统、污水处理系统以及太阳能电池板有效减少了建筑的碳排放量，使其成为一个自给自足的项目。此外，在丰富的体育和休闲活动空间的基础上，还补充了会议设施、杂货店、医务室、洗衣房和家政人员设施等。
Water recycling, rain-water harvesting, sewage treatment & solar panels contribute towards reducing the carbon footprint & making the project self-sufficient. The numerous sporting & entertainment activities are supplemented by conferencing facilities, a grocery store, a medical room, a laundromat & housekeeping staff facilities.
▼花园鸟瞰，aerial view to the garden ©Abhishek Shah

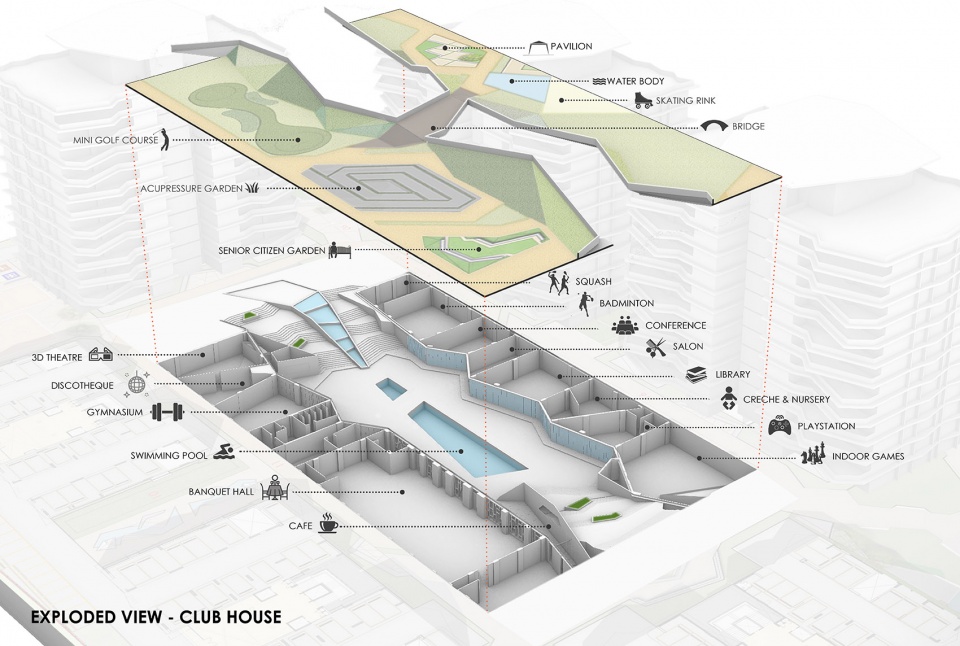

▼休闲设施轴测图，club house exploded view ©Sanjay Puri Architects

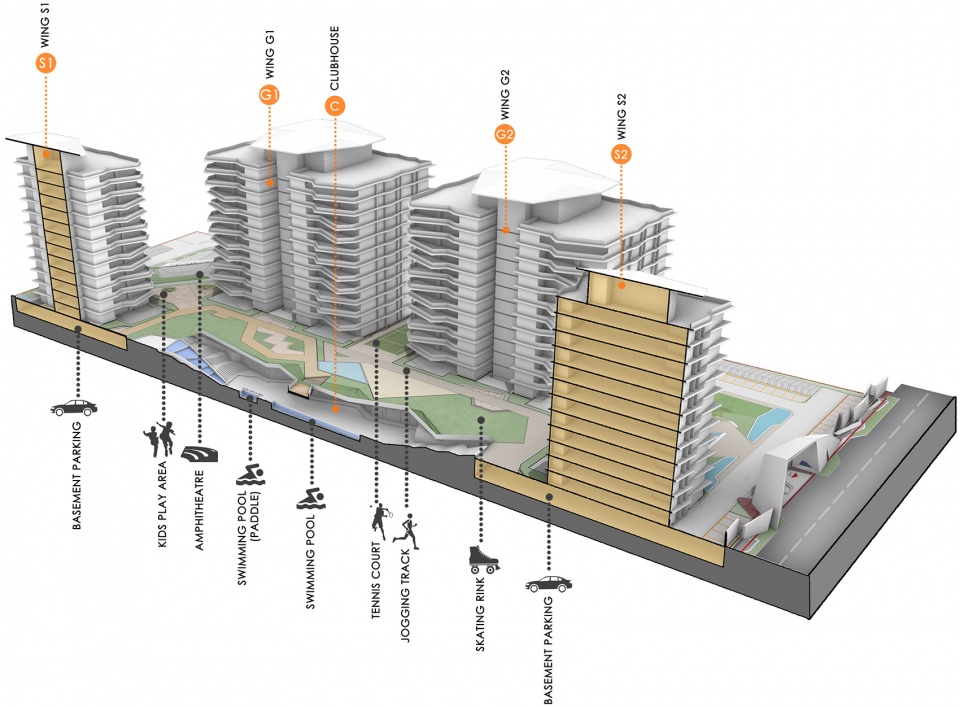

▼剖面透视图，sectional view ©Sanjay Puri Architects

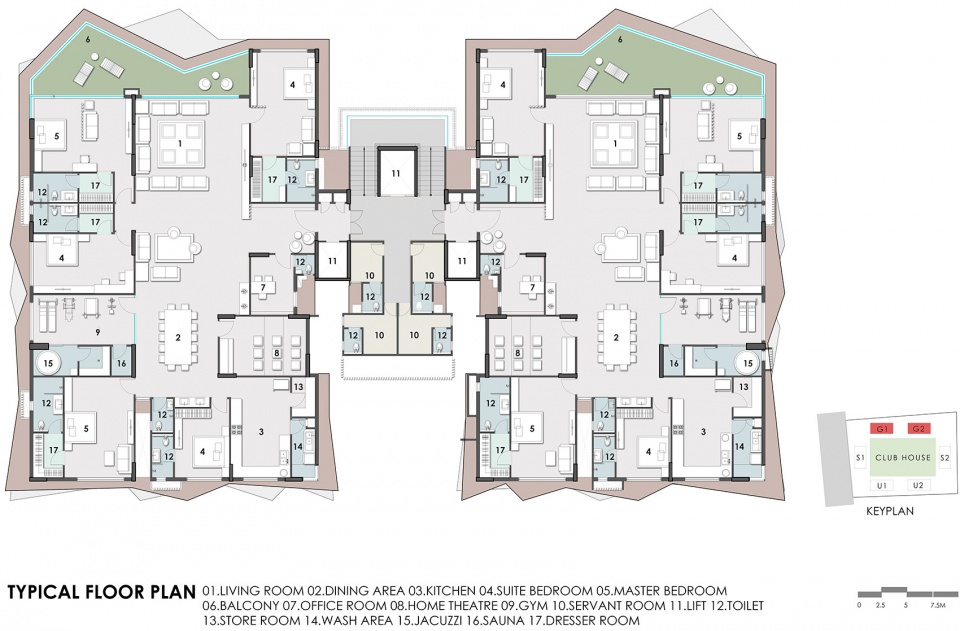

▼标准层平面图，typical floor plan ©Sanjay Puri Architects

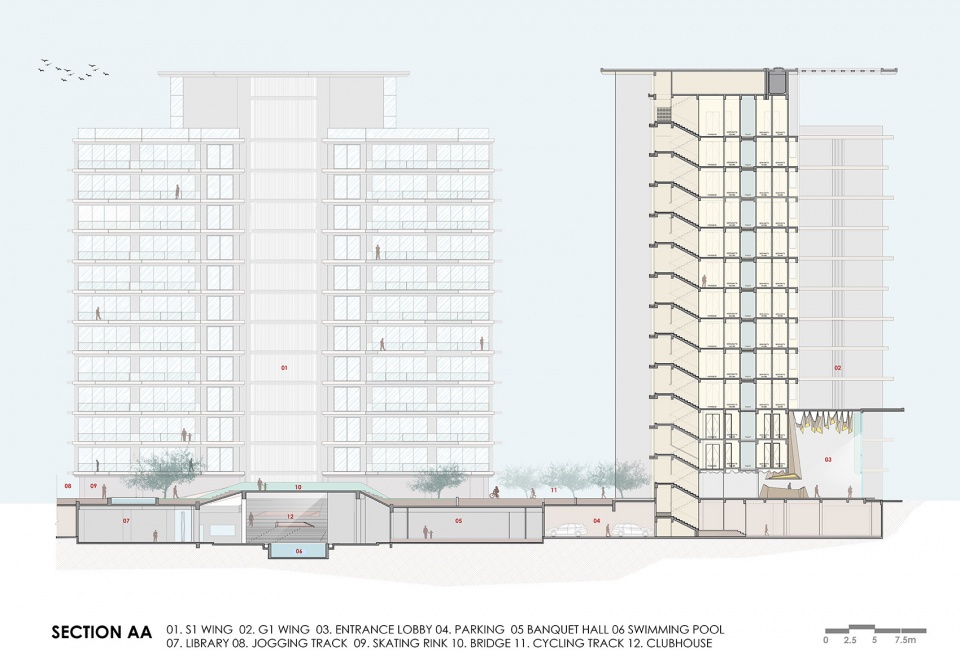

▼剖面图AA，section AA ©Sanjay Puri Architects
Location: Surat, India
Client’s Name: Happy Homes
Architecture Firm: Sanjay Puri Architects
Total Built-up Area: 130,000 sqm
Project Start Year: 2017
Project completion year: April 2020
Lead architect: Sanjay Puri
Design Team: Kapil Merchant, Madhavi Belsare& Pooja Sampat
Photo credit: Mr. Abhishek Shah
