Mill Film Studio by Studio Nine Architects

Created through the translation of the VFX process

Project Specs


非常感谢 Studio Nine Architects 对gooood的分享。
Appreciation towards Studio Nine Architects for providing the following description:

Studio Nine为全球知名的视觉特效公司Mill Film设计了其在澳洲的第一个工作室。方案从视觉特效制作流程中获取灵感,以“建模和表现”以及“光、色彩和纹理”作为两个关键性的设计原则。

Studio Nine has designed the first Australian studio for global visual effects production company Mill Film. The highly considered studio has been created through the translation of the VFX process using two key design principles ‘modelling and performance’ and ‘light, colour and texture’.

▼项目概览,preview ©Studio Nine Architects


Modelling and performance drove a strict planning structure responding to a clearly articulated workflow. The spatial response to the layout catered both to the client requirements of open vs closed spaces as well as working with the challenging octagonal floor plate of the building. Working, reviewing and socialising spaces were carefully placed to be seamlessly linked while always maintaining appropriate levels of separation.

▼楼梯下的座位区,seating area around the staircase ©Studio Nine Architects


Light, colour and texture profiles were created for each space type. Monochromatic artist areas work as a passive backdrop to on screen activities, as minimal distractions and visual interference are critical in these areas. The artist areas flow into warm and natural reviewing rooms where colour and material selections were key to providing spaces to review work on screen. Buffered from the artist spaces, the vibrant social spaces provide a colourful contrast to the work zones to socialise, relax and celebrate. Each space hosts a common thread of base materials tying them all together.

▼艺术家工作区,artist areas ©Studio Nine Architects

▼放映室,screening room ©Studio Nine Architects


The industrial aesthetic was developed to maintain a consistency in built form within the global network of Mill Film studios, while rich Australian timbers and a colour palette of rusts and deep reds introduced a local context.

▼走廊,corridor ©Studio Nine Architects


Building an edgy and industrial experience drove an outcome that celebrated the existing base building elements. Exposed floor and ceiling slabs were simply painted to express the bare bones, while reducing materials and focusing on longevity were the main sustainability targets. The introduction of the interconnecting stair and exposed services were a critical and complex piece of the puzzle, requiring a close and communicative design team to coordinate structure with services and architectural elements – catering to the functional design brief, as well as future proofing for potential growth in connecting to other levels in the future.

▼楼梯细节,stair detailed view ©Studio Nine Architects


The 4,300sqm workplace was designed to cater for 500 people. With five employees when the project started on site, the space was at full capacity within six months of handover. The project has injected a new lease of life into the previously under tenanted CBD building which overlooks the city and Adelaide Oval, and has attracted national and international talent to Adelaide.

▼中庭空间,staircase – atrium ©Studio Nine Architects

▼洗手间,rest room ©Studio Nine Architects

▼设计手绘,sketches ©Studio Nine Architects

▼7层平面图,level 7 floor plan ©Studio Nine Architects

▼8层平面图,level 8 floor plan ©Studio Nine Architects

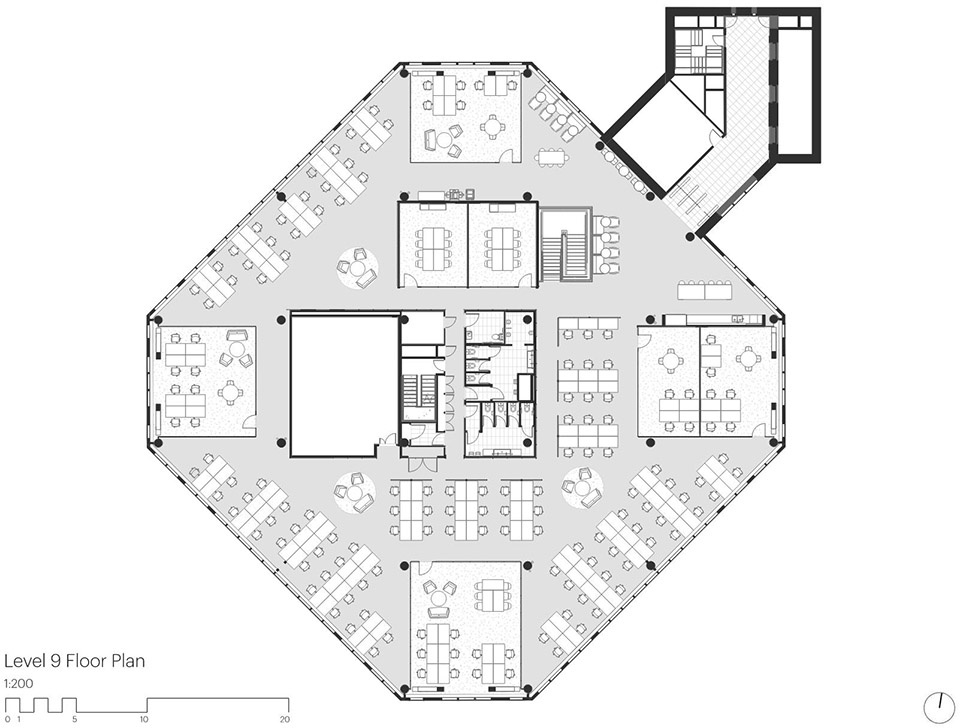

▼9层平面图,level 9 floor plan ©Studio Nine Architects

Project size: 4300 m2
Site size: 4300 m2
Project Budget: $9000000
Completion date: 2019
Building levels: 3
Project team: Studio Nine Architects
Architect / Interior Designer
