This never inhabited triplex covers 900m2 and is located nearby the Ibirapuera Park, in São Paulo (Brazil). Its original environments were fragmented and darkish. The project, signed by the architects of Casa 14 Arquitetura, Mariana Andersen and Mariana Guardani, aimed at integrating the floors and stressing the character of the materials.
▼项目概览，preview ©Maira Acayaba

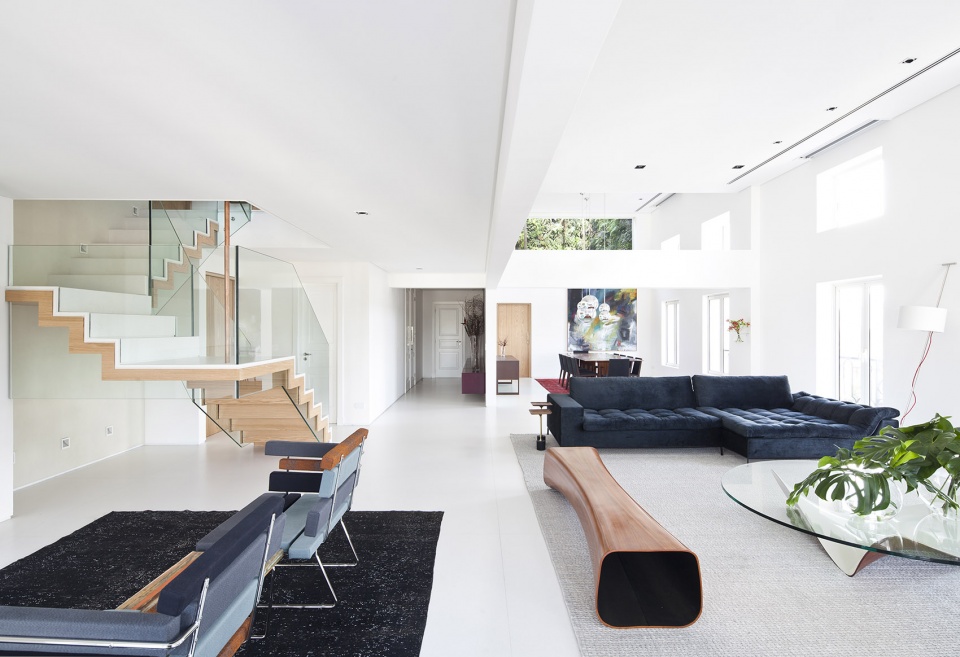

The generous openings of the walls offered a visual connection between different environments in each of the three levels of the apartment. The Project also emphasized the relationship between the environment, gardens and circulations. The staircase – a folded steel plate lined with wood on the bottom and white stone on the top – appears as the sculptural element that interlinks the three decks. The vertical structure stands out.

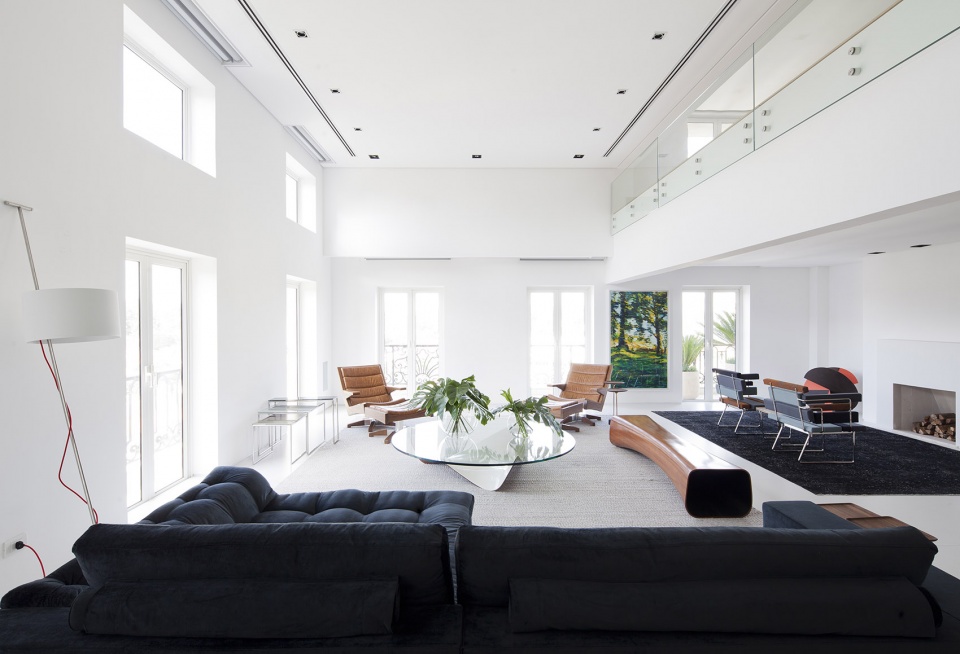

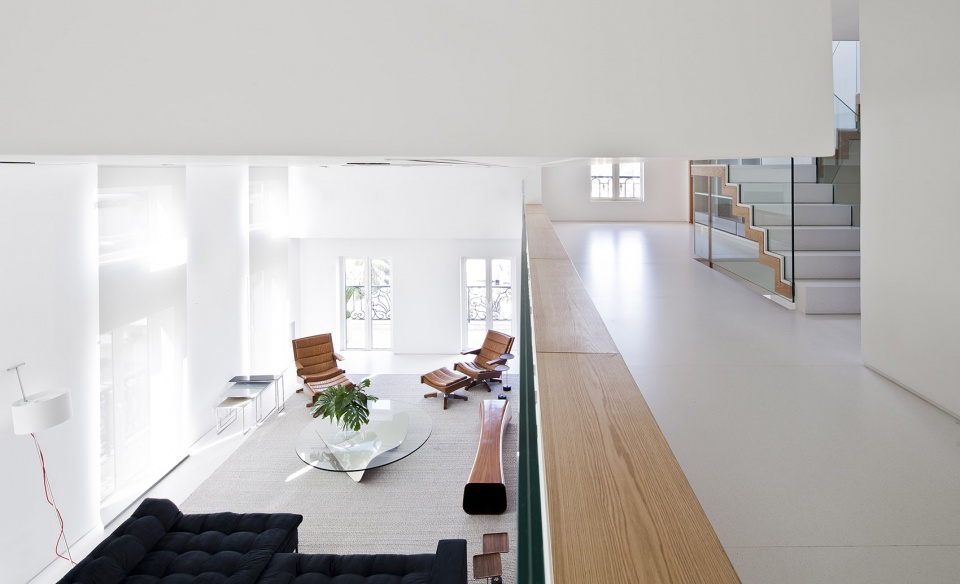

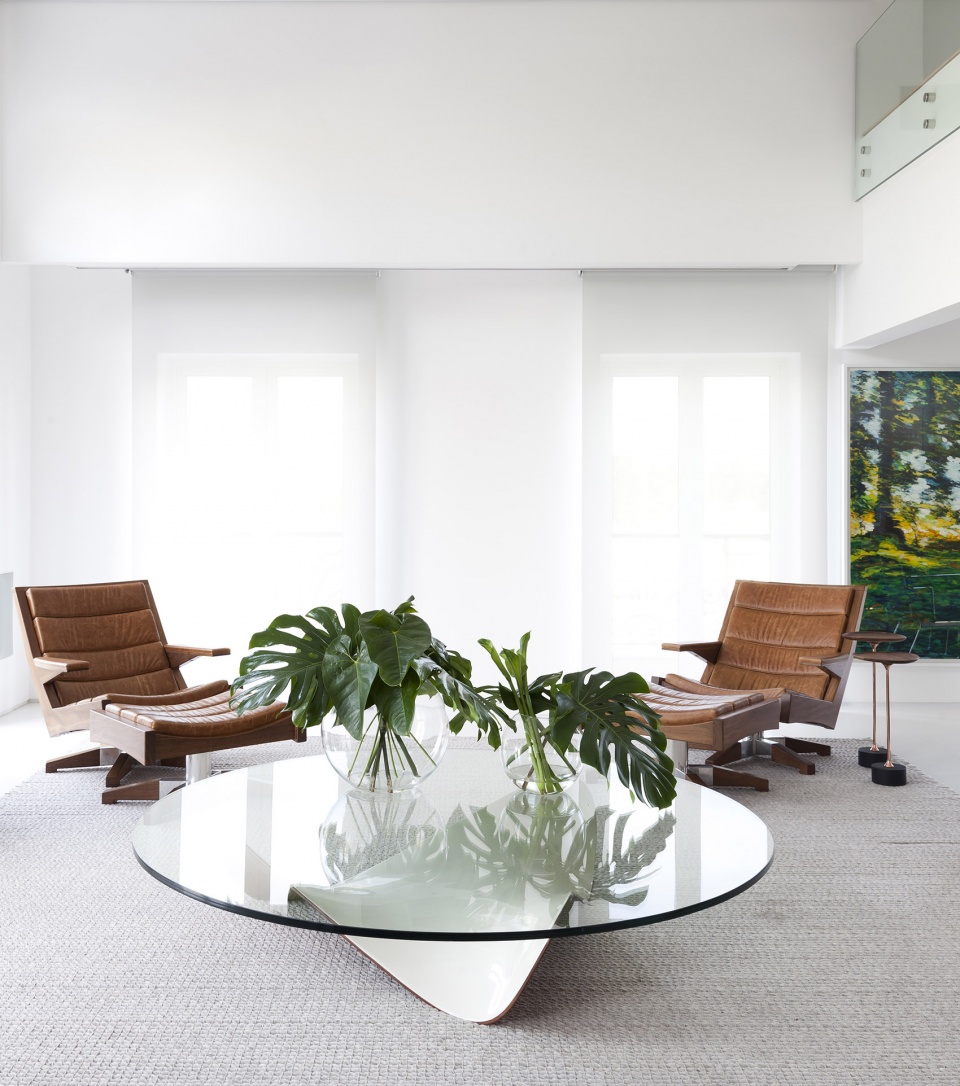

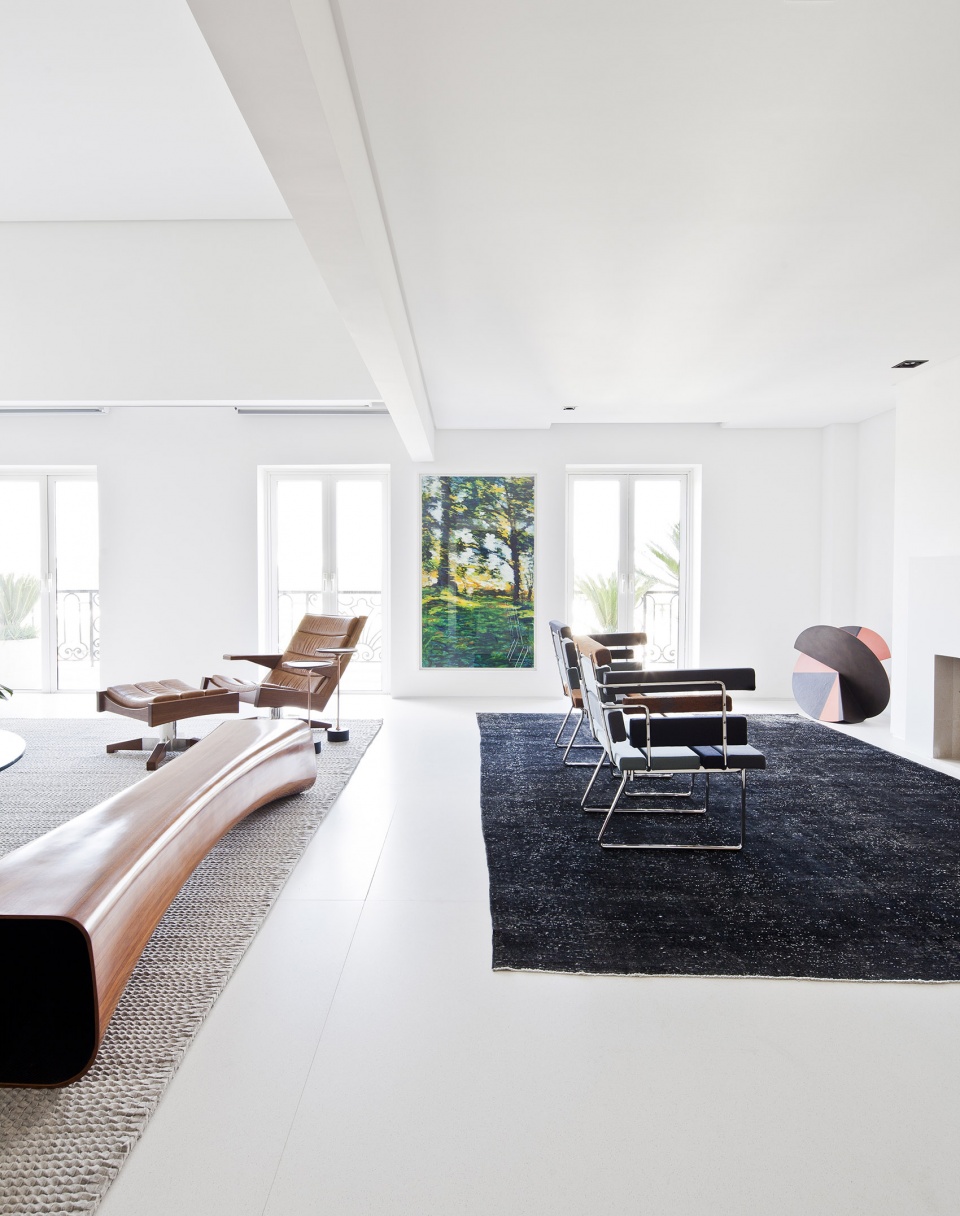

▼客厅，living room ©Maira Acayaba

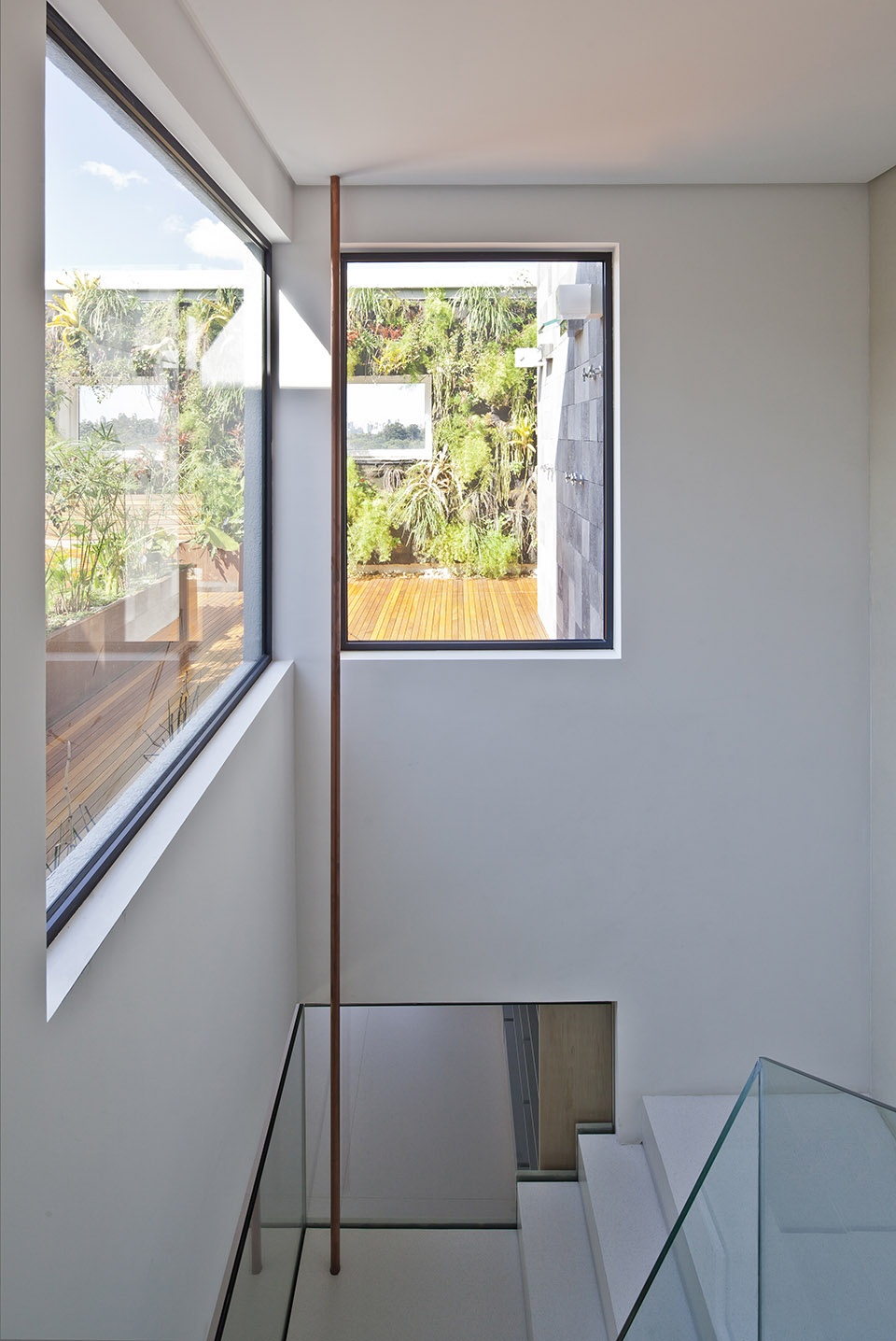

▼室内细节，detailed view ©Maira Acayaba
Each floor was designed for a specific use. In this order: live, work and rest. On the first level are the rooms, kitchen and service area. The second was designed to receive a library of 5 thousand titles integrated into a garden where the resident works, reads and writes. The last level brings the leisure area, with a music studio, hot tub, sauna and a barbecue, permeated by a vertical garden in all its extension.

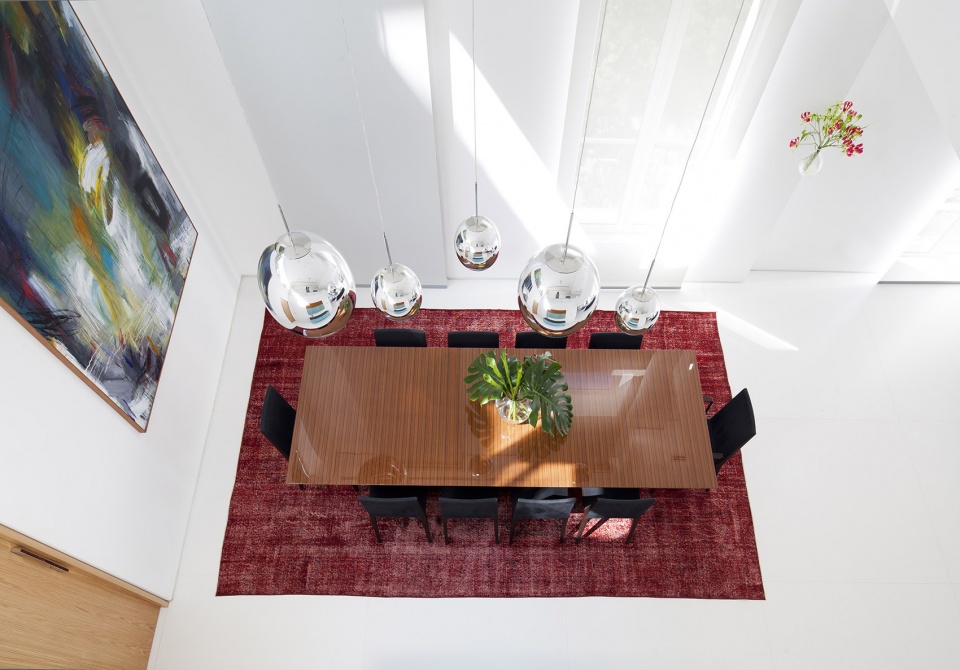

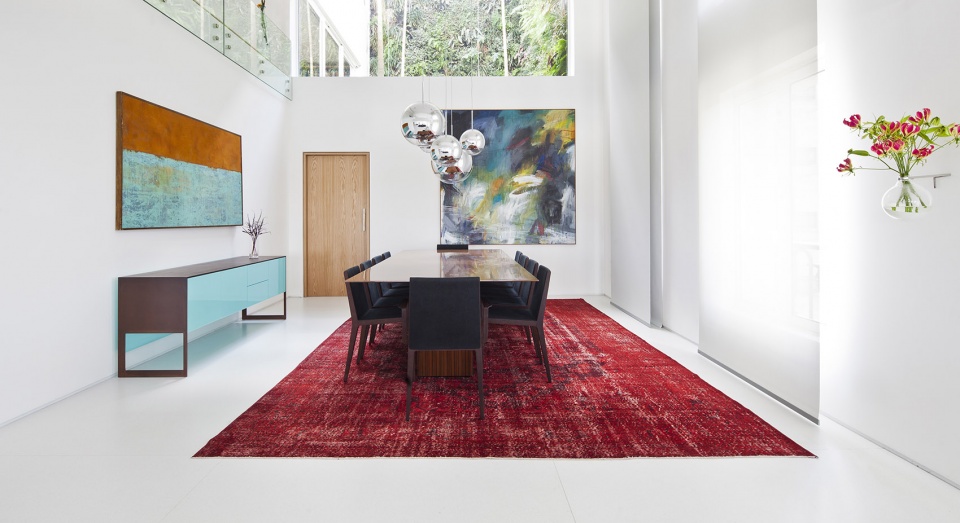

▼餐厅，dining area ©Maira Acayaba

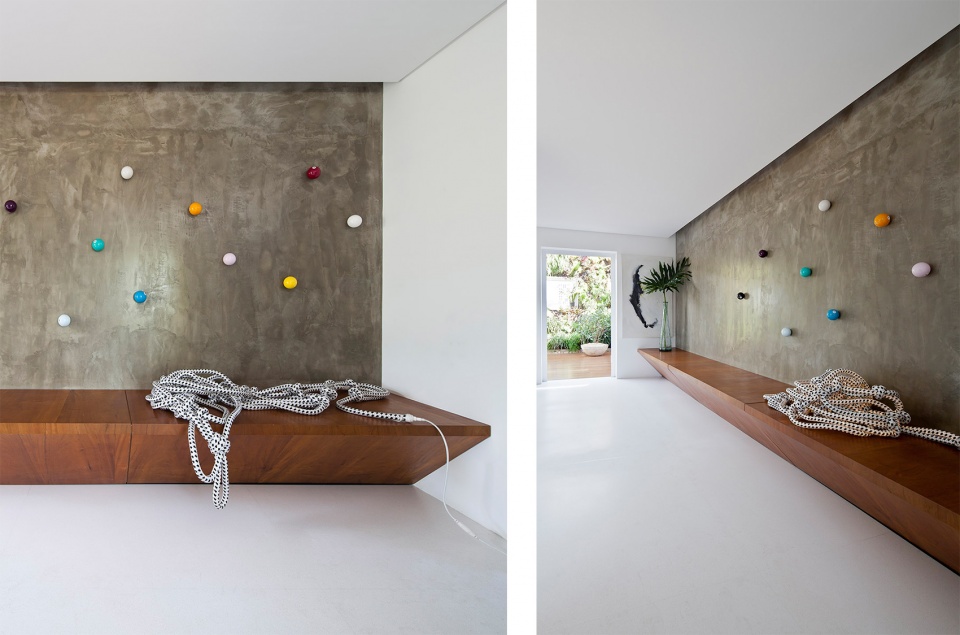

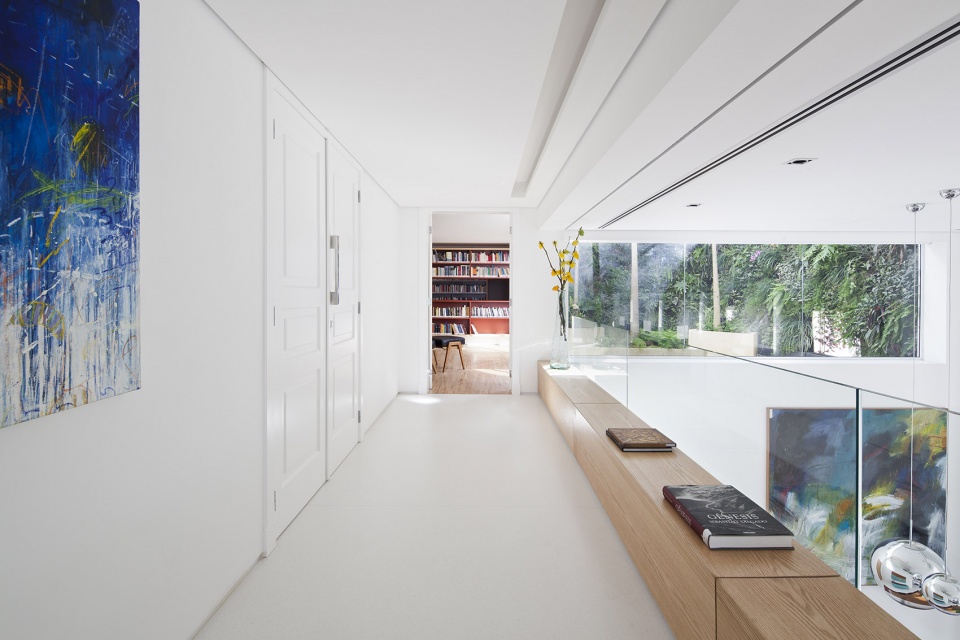

▼二层走廊，corridor on the second floor ©Maira Acayaba

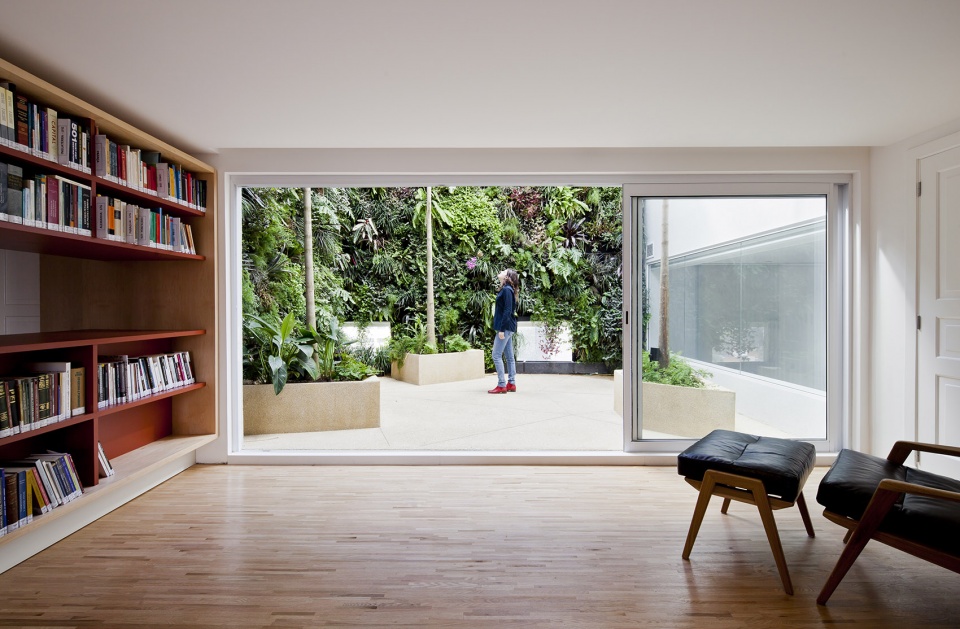

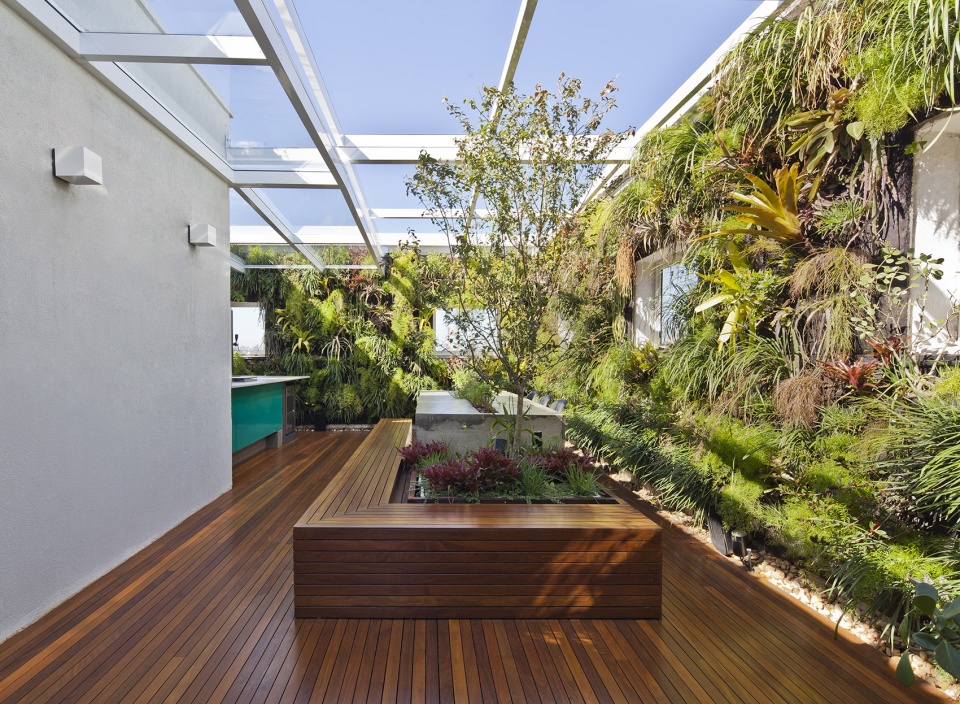

▼露台种植墙， vertical garden ©Maira Acayaba

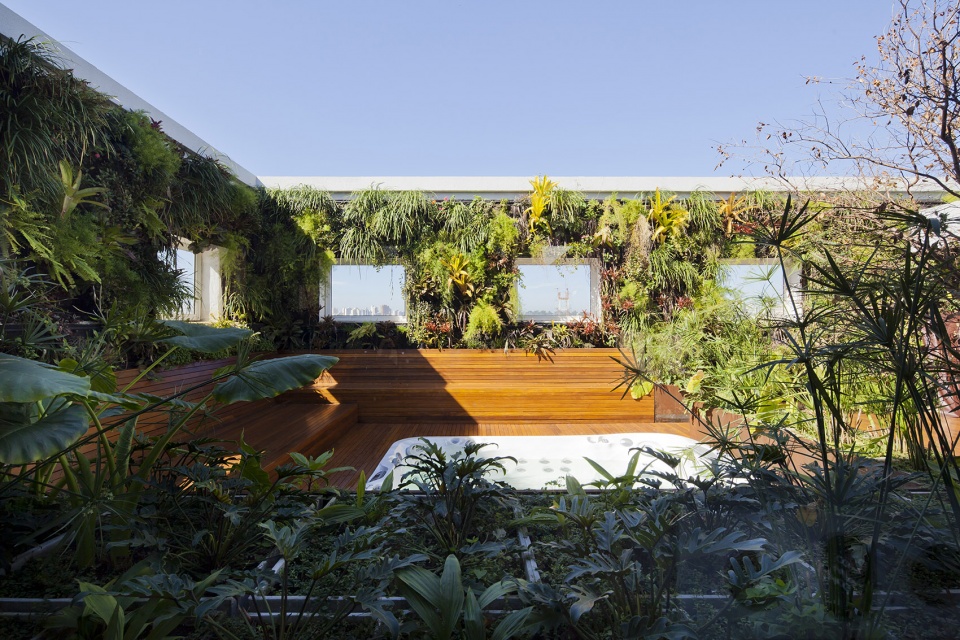

▼露台浴缸，bathtub ©Maira Acayaba
The furniture sheds light on the Brazilian design. The art pieces, carpets, among others, establish a counterpoint to the absence of ornaments and the straight lines of the residence. The main materials – wood, glass, light stone and vegetation – allow a dialogue with the environment and produce a luminous and inspiring atmosphere for the resident, who works as a writer at home.

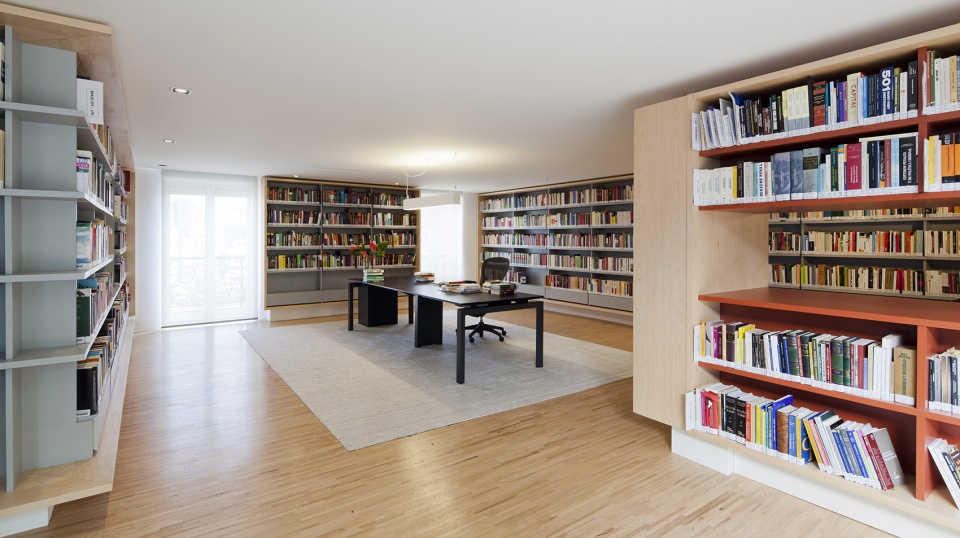

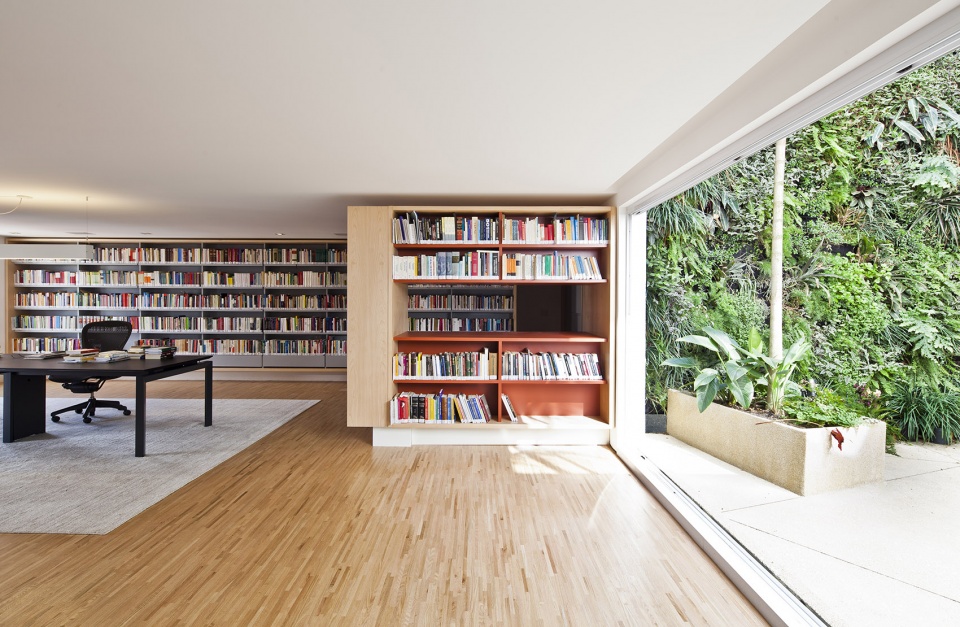

▼图书室，library ©Maira Acayaba

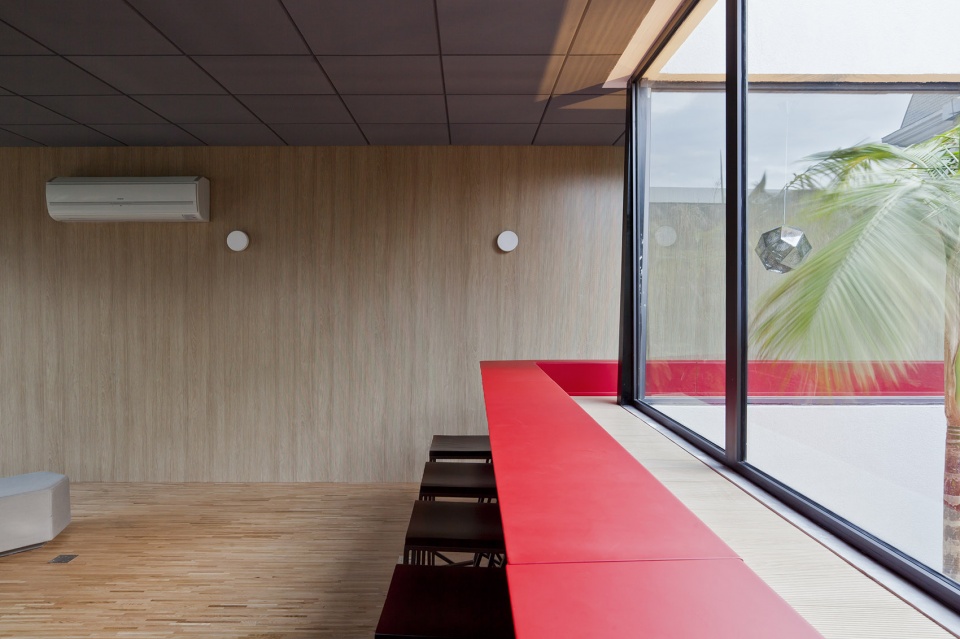

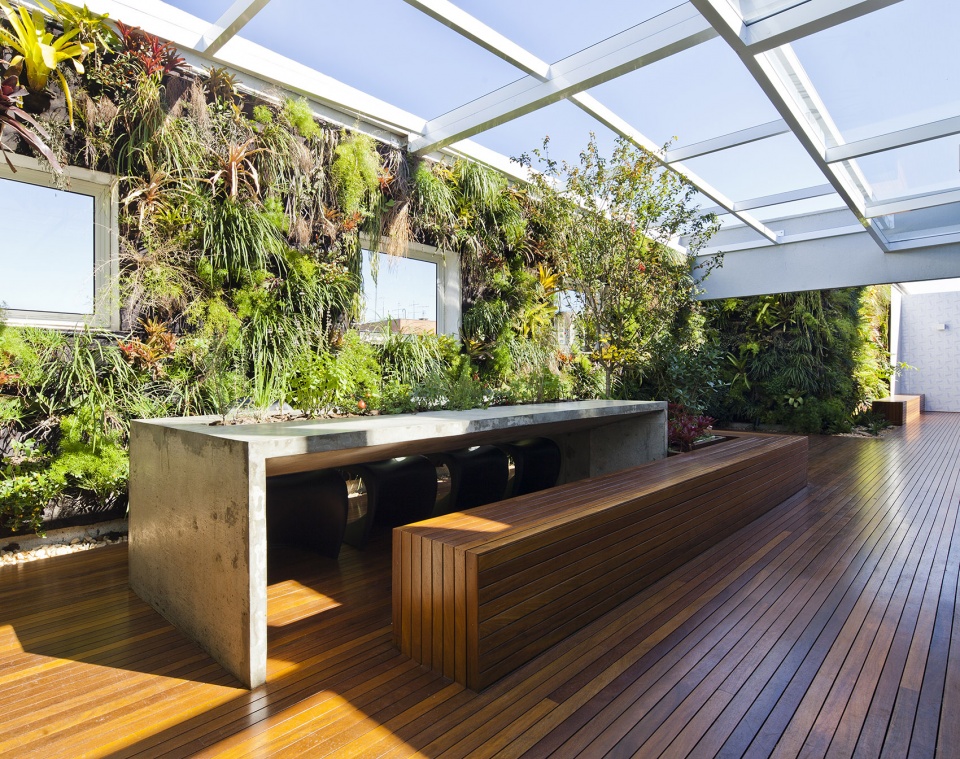

▼休闲区，leisure area ©Maira Acayaba

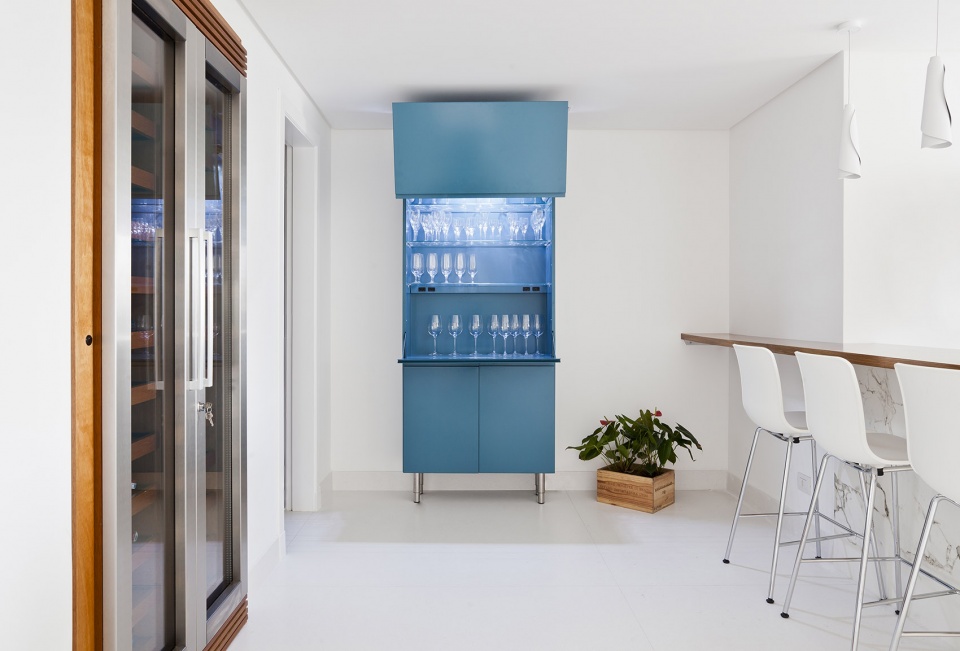

▼酒吧，bar ©Maira Acayaba

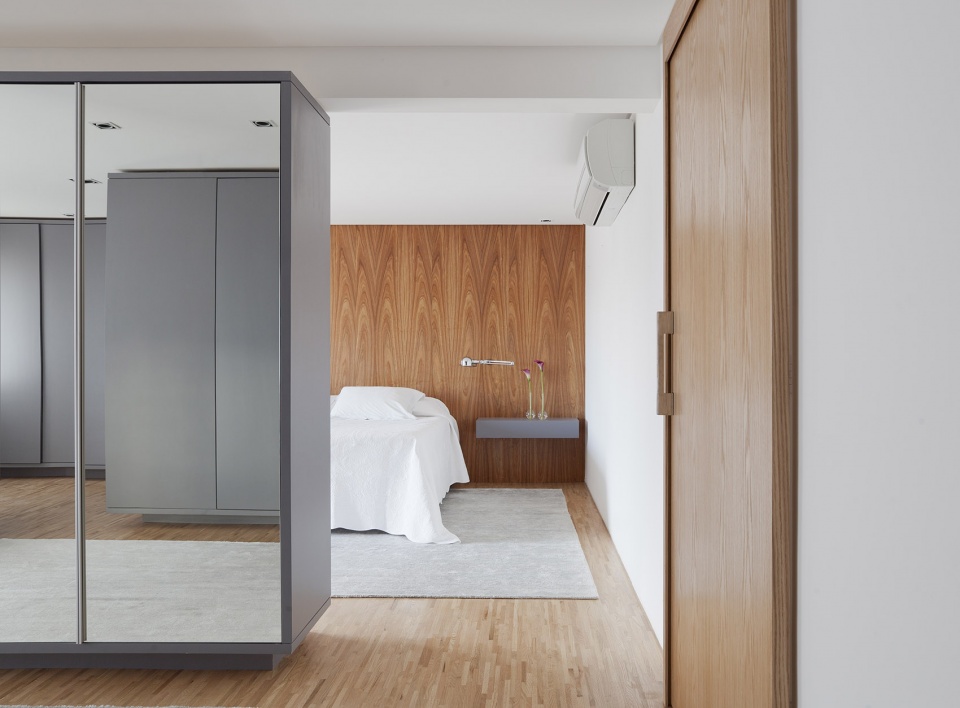

▼卧室，bedroom ©Maira Acayaba
▼音乐室，music room ©Maira Acayaba

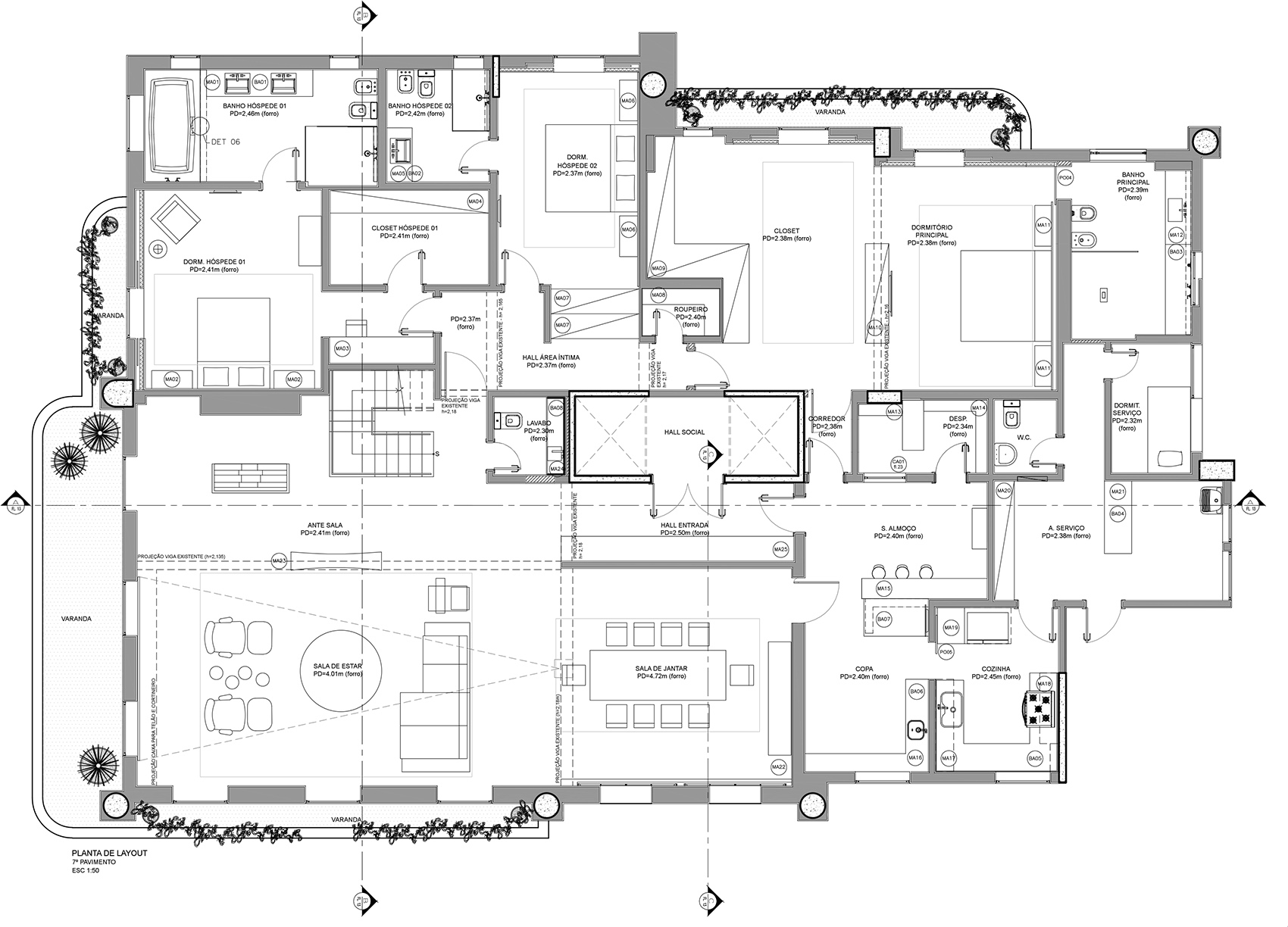

▼一层平面图，plan level 1 ©Casa14 Arquitetura

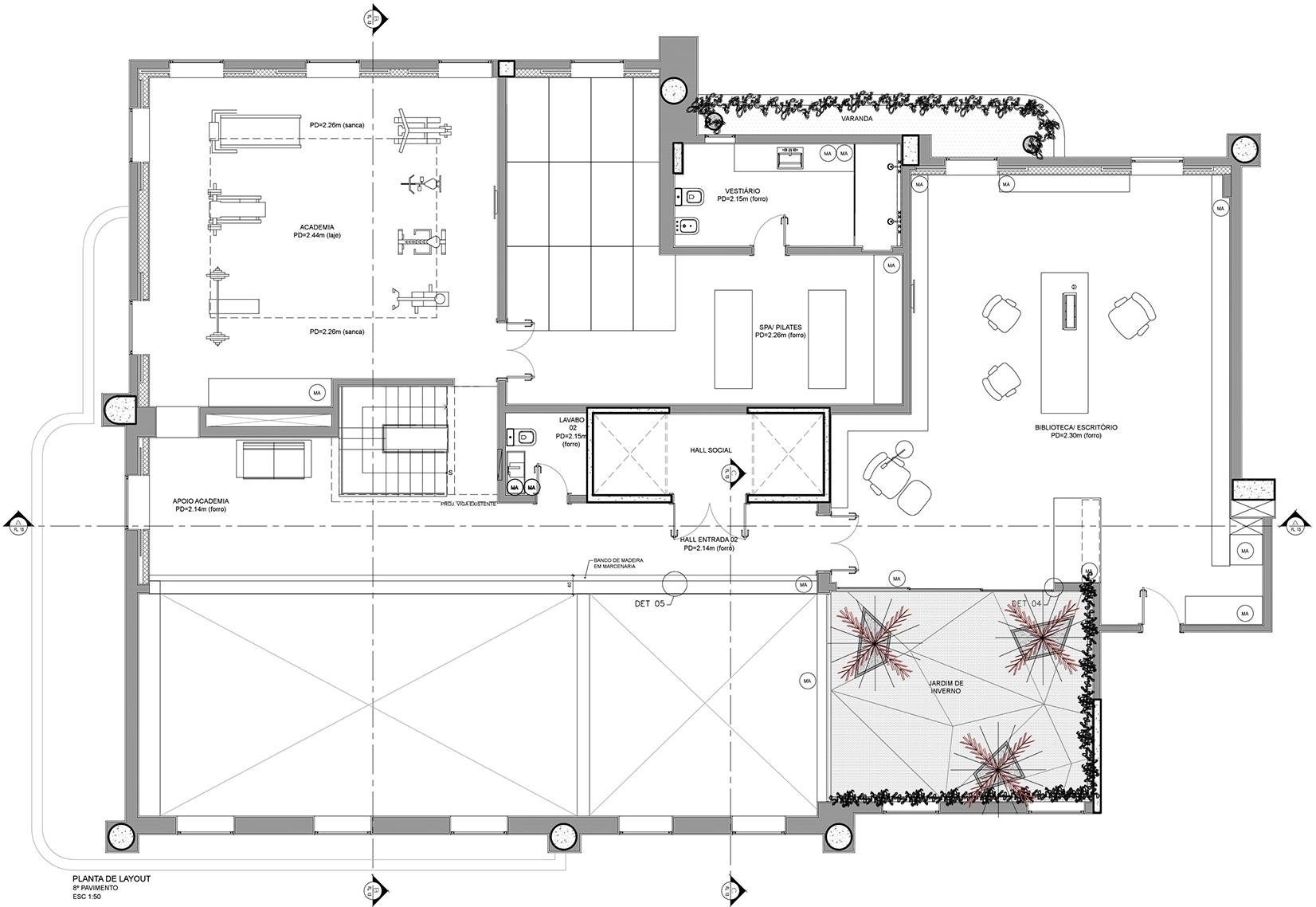

▼二层平面图，plan level 2 ©Casa14 Arquitetura
▼三层平面图，plan level 3 ©Casa14 Arquitetura

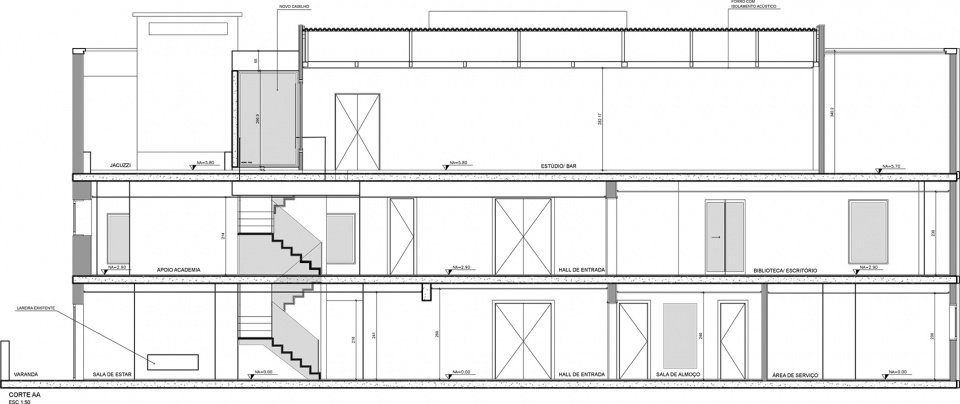

▼剖面图，section ©Casa14 Arquitetura
Project name: ibirapuera Apartment
Architect’s Firm: Casa14 Arquitetura
Contact e-mail: firstname.lastname@example.org
Project location: São Paulo, Brazil
Completion Year: 2015
Gross Built Area : 900 square meters
Lead Architects: Mariana Andersen e Mariana Guradani (Casa14 partners)
Other participants Max Heringer and Gabriele Azevedo
Kleber Canistral (engenieer)
(eg. collaborators, clients, consultants, etc): Builder: Lock Engenharia
Photo credits: Maira Acayaba
Photographer’s website: http://www.mairaacayaba.com/
More: Casa14 Arquitetura
